Are you aware of the typical failure modes of socket connectors across different phases and their corresponding solutions?
From the customer's perspective, potential issues with socket connectors at various stages and their corresponding solutions are categorized as follows:

1. Design Phase


Common Issues
1. Size and Layout Conflicts
   - Connector dimensions do not match PCB or housing, causing spatial interference.
2. Inadequate Electrical Parameters
   - Current/voltage mismatch leading to overheating or signal loss.
3. Unreliable Mechanical Structure
   - Insufficient mating cycles, loose fixation, or poor durability.
Solutions
- Collaborative Design Verification: Share 3D models with suppliers for virtual assembly checks.
- Simulation Optimization: Conduct signal/power integrity (SI/PI) analysis to validate electrical performance.
- High-Reliability Design: Use connectors with high mating cycles (e.g., 10,000+), add locking mechanisms (e.g., latches/screws).

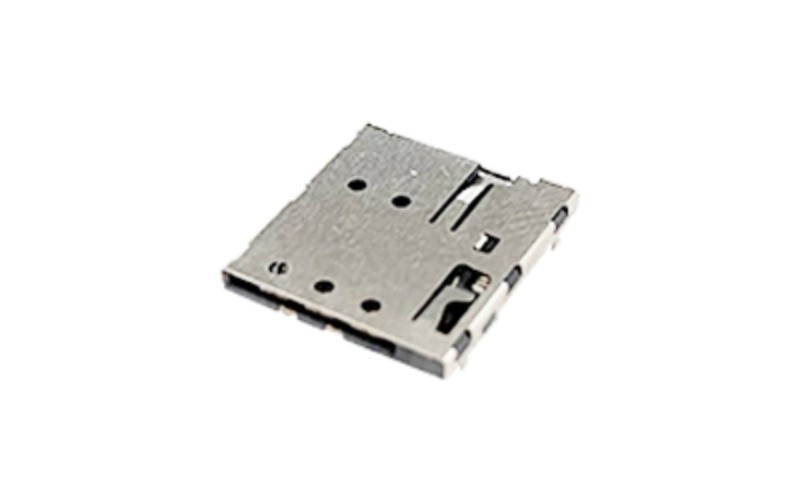

card connector factory

2. Selection Phase


Common Issues
1. Incorrect Specifications
   - Mismatched current/voltage/signal requirements.
2. Poor Environmental Adaptability
   - Performance degradation in high temp/humidity/vibration conditions.
3. Supplier Risks
   - Unstable quality from small manufacturers, lack of certifications.
Solutions
- Strict Specification Review: Verify key parameters (current rating, impedance, voltage tolerance).
- Environmental Testing: Request test reports (e.g., IPC-610 compliance for temp/humidity/vibration).
- Preferred Suppliers : Choose ISO-certified vendors (e.g., Moarconn) and maintain backup options.
card connector factory

3. Installation Phase


Common Issues
1. Poor Soldering
   - Cold solder joints or voids causing connection failures.
2. Misalignment During Mating
   - Bent or broken pins due to improper insertion.
3. Insufficient Protection
   - Short circuits from dust/static electricity.
Solutions
- Automated Soldering: Use SMT assembly with AOI (Automated Optical Inspection) to minimize errors.
- Foolproof Design: Implement keyed or asymmetrical alignment features.
- Protective Measures: Use dust covers and ESD-safe workstations.

4. Usage Phase


Common Issues
1. Poor Contact
   - Oxidation/contamination causing signal dropouts.
2. Mechanical Wear
   - Reduced insertion force or sticking.
3. External Stress Damage
   - Cable pulling deforming the connector.
4. Overheating
   - Excessive temperature rise under high current.
Solutions
- Regular Maintenance: Clean contacts with isopropyl alcohol; prefer gold-plated terminals.
- Minimize Mating Cycles: Use redundant ports or latching mechanisms (e.g., flip-lock sockets).
- Stress Relief: Add strain relief clips or cable boots.
- Thermal Management: Improve ventilation or use metal-shell connectors.

5. Maintenance Phase


Common Issues
1. Improper Disassembly
   - Forceful handling damaging connectors or PCBs.
2. Lack of Lifecycle Management
   - Failure to replace aged components.
Solutions
- Visual Guides: Provide step-by-step disassembly instructions with force points marked.
- Lifecycle Monitoring: Track mating cycles and set replacement thresholds (e.g., 80% of rated lifespan).

6. Other Potential Issues


Compatibility Problems
- New/old connector versions mismatch.
  Solution: Design for backward compatibility and cross-test.
Cost Pressure
- High cost of premium connectors.
  Solution: Negotiate volume pricing or reduce non-critical features (e.g., thinner plating).
Supply Chain Risks
- Delivery delays causing production halts.
  Solution: Secure local inventory or adopt VMI (Vendor-Managed Inventory).

Conclusion


By proactively addressing issues at each stage (e.g., collaborative design, rigorous selection, automated assembly, preventive maintenance), socket connector failures can be significantly reduced. Key strategies include:
1. Early Engagement : Work closely with suppliers during design.
2. Data-Driven Decisions : Rely on test reports and simulations.
3. Lifecycle Management : Implement usage tracking and timely replacements.
