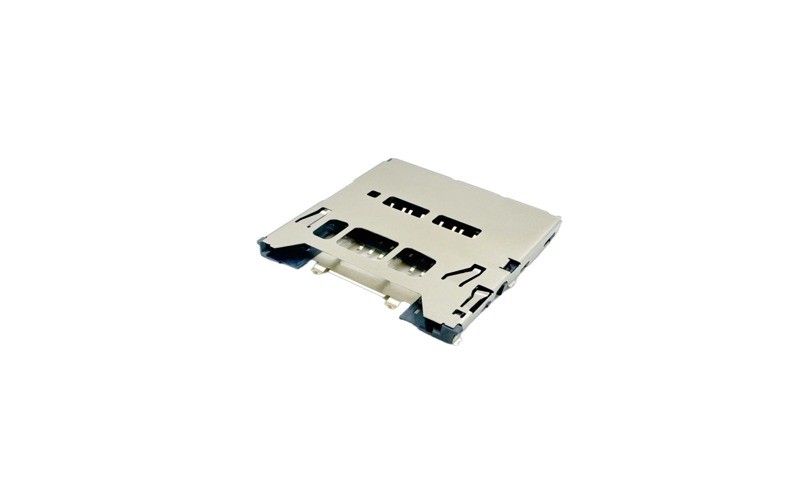

Engineer’s Notebook: Why SD Card Connectors Fail in Industrial Applications and How Custom Design Improves Reliability
Introduction: SD Card Connectors Are More Than Simple Card Holders
In modern industrial electronics, SD cards are widely used for:
Data logging
Firmware updates
System configuration storage
Machine monitoring
Automotive data recording
However, when an industrial device experiences:
SD card detection failure
Unexpected data loss
Intermittent communication errors
System instability
the SD card itself is not always the root cause.
For engineers designing industrial equipment, automotive electronics, and embedded systems, selecting a reliable SD card connector is a critical design decision—not simply a component selection task.
A high-quality SD Card Connector must provide:
Stable electrical contact
Mechanical durability
Resistance against vibration and shock
Long-term reliability under temperature changes
Moarconn specializes in developing and manufacturing high-reliability card connectors, including customized SD card connectors designed for demanding industrial and automotive applications.
1. The Core Truth: SD Card Connector Failures Start at the Contact Interface
An SD card connector is not only a mechanical holder.
It is a precision electromechanical interface responsible for maintaining:
Electrical signal transmission
Mechanical positioning
Contact pressure stability
The most common SD card connector failures occur at the contact interface.
Typical failure mechanisms include:
1.1 Increased Contact Resistance
Over time, contact resistance may increase due to:
Terminal wear
Oxidation
Dust contamination
Loss of contact pressure
Higher resistance can result in:
Signal instability
Read/write errors
Data corruption
1.2 Contact Intermittency
In industrial environments, even a millisecond-level interruption can affect system reliability.
A typical failure chain:
Mechanical vibration
↓
Micro movement between SD card and connector
↓
Temporary contact loss
↓
Communication interruption
↓
Data error or system failure
This is why industrial applications require SD card connectors with optimized contact structures and mechanical stability.
2. Why Industrial Environments Accelerate SD Card Connector Failure
Consumer electronics usually operate under controlled conditions.
Industrial equipment faces much more challenging environments.
2.1 Vibration and Mechanical Shock
Industrial machines, vehicles, and outdoor devices continuously experience:
Vibration
Mechanical impact
Equipment movement
Without proper connector design, vibration can cause:
Terminal displacement
Fretting corrosion
Intermittent connection
For automotive and industrial applications, vibration resistance is one of the most important SD connector selection factors.
2.2 Temperature Changes and Material Aging
Industrial devices often operate under:
High temperature
Low temperature
Thermal cycling
Temperature changes can affect:
Plastic Housing
Possible issues:
Expansion and contraction
Structural deformation
Metal Terminals
Possible issues:
Reduced spring force
Contact pressure degradation
Material fatigue
Therefore, engineers need to evaluate not only electrical specifications but also material stability under real operating conditions.
2.3 Humidity and Environmental Contamination
Humidity may accelerate:
Oxidation
Corrosion
Contact degradation
For outdoor equipment and industrial automation systems, environmental protection becomes an important design consideration.
3. Why Standard SD Card Connectors May Fail in Industrial Applications
Consumer electronics
Office equipment
Controlled environments
However, industrial applications require:
Requirement Consumer SD Connector Industrial SD Connector
Temperature resistance Limited Wide temperature range
Vibration resistance Basic Reinforced structure
Mechanical durability Standard Long lifecycle
Customization Limited Application-specific design
Industrial and automotive systems often require connectors capable of handling severe conditions including temperature cycling, vibration, shock, and long service life.
4. Engineering Failure Analysis: What Causes SD Card Connector Problems?
Failure Mode 1: Contact Wear
Cause:
Frequent insertion/removal
Poor terminal material selection
Insufficient contact force
Result:
Increased resistance
Unstable signals
Failure Mode 2: Mechanical Stress
Cause:
Improper mounting
Weak housing structure
External vibration
Result:
Connector deformation
Card retention failure
Failure Mode 3: Design Mismatch
A common engineering mistake is selecting a connector based only on:
Size
Pin count
Price
Instead, engineers should evaluate:
Application environment
Expected lifecycle
Reliability requirements
5. How Custom SD Card Connector Design Improves Reliability
When standard products cannot meet application requirements, customized SD card connector solutions provide greater flexibility.
5.1 Customized Contact Design
Engineering optimization may include:
Contact geometry adjustment
Contact force optimization
Improved terminal structure
Benefits:
Lower contact resistance
Better vibration resistance
Longer service life
5.2 Material Optimization
Custom SD card connectors can be designed with:
High-temperature plastics
Improved terminal materials
Enhanced plating solutions
This improves:
Thermal stability
Corrosion resistance
Electrical reliability
5.3 Mechanical Structure Optimization
Customization options include:
Reinforced housing
Improved card retention
Locking mechanisms
Customized mounting solutions
These designs help maintain reliable connections even under vibration and shock conditions.
6. Moarconn Engineering Approach: Designing Reliable SD Card Connectors
With extensive experience in card connector development and manufacturing, Moarconn provides:
Engineering Design Support
Including:
Product structure optimization
Connector customization
Mold development
Prototype validation
Manufacturing Capability
Moarconn focuses on:
SD card connectors
Micro SD connectors
SIM card connectors
Custom card socket solutions
The company integrates:
R&D
Precision tooling
Manufacturing
Quality control
to provide complete connector solutions for global customers.
7. Engineer’s Checklist: How to Select a Reliable SD Card Connector
Before selecting an SD card connector, engineers should evaluate:
Mechanical Reliability
☑ Insertion/extraction cycles
☑ Card retention force
☑ Housing strength
Environmental Performance
☑ Operating temperature range
☑ Vibration resistance
☑ Shock resistance
☑ Humidity protection
Electrical Performance
☑ Contact resistance
☑ Signal stability
☑ Current capability
Manufacturing Support
☑ Custom design capability
☑ Prototype support
☑ Reliability testing capability
8. Applications of High-Reliability SD Card Connectors
Moarconn SD card connectors are suitable for applications including:
Industrial Automation
Industrial controllers
Factory equipment
Data acquisition systems
Automotive Electronics
Vehicle data logging
Infotainment systems
ADAS applications
Embedded Systems
IoT devices
Smart equipment
Edge computing systems
Moarconn provides engineering support from concept design to mass production.
Contact Moarconn today to discuss your SD card connector requirements. are suitable for applications including:
Conclusion: Reliability Starts With the Right SD Card Connector Design
In industrial applications, SD card connector reliability directly affects:
Data integrity
System stability
Product lifecycle
Connector failure is often caused by:
Poor contact stability
Mechanical stress
Environmental challenges
The right SD card connector design combines:
Mechanical engineering + Material selection + Reliability testing
Through customized SD card connector solutions, Moarconn helps engineers build more reliable industrial and automotive products.
