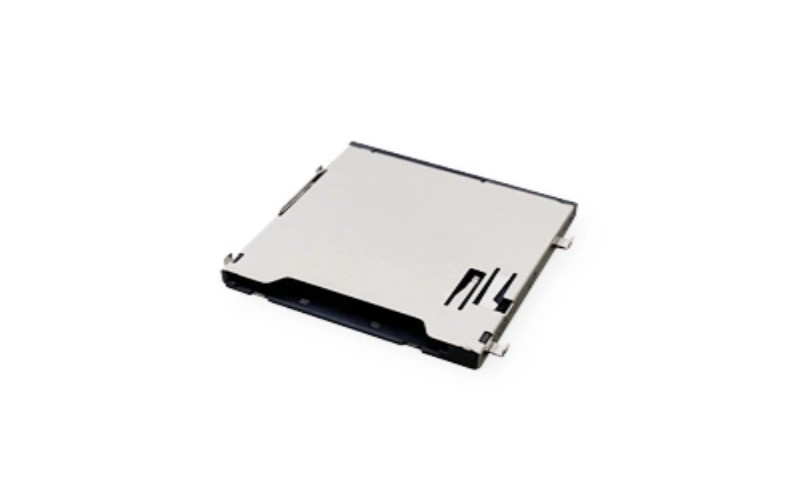

How to Choose Reliable SD Card Connectors to Avoid Read/Write Failures

How to Choose Reliable SD Card Connectors to Avoid Read/Write Failures

Summary

Learn how to choose reliable SD card connectors to prevent read/write failures in industrial and embedded applications.

How to Choose Reliable SD Card Connectors to Avoid Read/Write Failures

How to Choose Reliable SD Card Connectors to Avoid Read/Write Failures

Expert Guide for Engineers – Ensure Long-Term Data Integrity & Robust Performance

关键词优化方向（SEO）： SD Card Connector, Reliable SD Connectors, Avoid Read/Write Failures, SD Connector Selection Guide, Connector Reliability
目标用户： Hardware & system engineers, product designers, embedded developers

Introduction: Why Choosing the Right SD Card Connector Matters

SD cards are vital components in modern embedded systems, industrial devices, automotive controllers, and consumer electronics thanks to their compact size and versatile storage. However, data read/write failures are more often caused by the SD card connector than the memory card itself, especially in harsh operating conditions.

An SD card connector is the physical interface between your system and the memory card. Poor contact quality, mechanical stress, vibration, or inadequate electrical design can all lead to unreliable data transmission—causing corrupted files, system reboots, or failed product deployments.

Moarconn, a trusted connector solutions provider with over 20+ years of experience, understands these challenges deeply and offers engineering-grade SD card connectors designed for reliability and durability in demanding applications. (company intro based on www.moarconn.com)

1. Understand Common Causes of Read/Write Failures

Before selecting a connector, engineers must identify what contributes to data integrity issues:

Weak or intermittent physical contact between SD card and connector
Mechanical wear and connector fatigue from repeated insertion cycles
Signal integrity degradation due to contact resistance or EMI
Environmental stress — temperature extremes, shock, vibration, dust, moisture

These issues may not be obvious during early prototyping but will show up under long-term use in the field. Choosing the right connector is the first line of defense against such failures.

2. Critical Factors When Choosing a Reliable SD Card Connector

Selecting an SD card connector is not just about physical footprint — it’s an engineering decision. Here are the essential aspects to consider:

✔ Mechanical Reliability


Retention Force & Contact Stability:
Reliable connectors maintain consistent spring contact pressure over many insertion/extraction cycles. Engineers should look for:

Gold-plated contacts for corrosion resistance
Strong spring force design that resists micro-movement
High lifecycle rating (e.g., ≥10,000 insertion cycles)

✔ Electrical Performance & Signal Integrity


Data corruption often happens due to poor electrical coupling:

Stable contact resistance across environmental changes
Support for relevant SD speeds (SD/SDHC/SDXC, UHS standards)
Proper impedance matching and minimal signal reflection

✔ Vibration & Environmental Resistance


In automotive, industrial, or mobile applications:

Connector must withstand vibration and shock
Design should include locking features to prevent card loosening
EMI shielding and ESD protection improve signal reliability

✔ PCB Integration & Mounting

Appropriate mounting technology (SMT or through-hole) affects long-term reliability:

Well-designed footprint to minimize solder joint stress
Alignment with host board layout to maintain signal path integrity

3. Connector Types & Why It Matters

Different connector mechanisms influence performance and reliability:

Connector Type          Mechanical Behavior                         Best For

Push-Push                      Card clicks in/out with spring action      Consumer devices
Push-Pull                        Push to insert, pull to remove                Secure environments
Locking/Slide                 Physical latch                                           Harsh/vibration environments

Some connectors also include card detection or write-protect switches, adding usability features without compromising reliability.

4. How Moarconn SD Card Connectors Prevent Read/Write Failures


Moarconn specializes in SD card connectors engineered for reliability from prototype to production:

🛠 Precision Contact Design

Spring-loaded contacts with gold plating
Robust retention for stable electrical interface

🔩 Mechanical & Environmental Durability

Designed for extended life cycles (>10,000+)
Strong resistance to shock and vibration

💡 Electrical & EMI Optimization

Support for high-speed SD protocols
Optional EMI shielding features

⚙ Tailored Engineering Support

Custom pinouts, detection switches, mounting options
On-demand technical consultation for system-level performance

Explore Moarconn SD Card Connector series at www.moarconn.com and access datasheets and CAD models to accelerate your design.

5. Engineer’s Quick Selection Checklist


Use this practical checklist during the design phase:

✔ Does the connector support the expected insertion cycle rating?
✔ Are the contact materials optimized for corrosion resistance?
✔ Is the connector suited to your temperature/vibration profile?
✔ Does the electrical design match the SD card’s signal requirements?
✔ Does the PCB layout prevent mechanical and electrical stress?

This checklist helps engineers ensure that the chosen connector won’t be the weak link in the system.

Conclusion — Reliable Connectors Prevent Costly Failures


Choosing the right SD Card Connector is vital for system reliability and data integrity. By evaluating mechanical durability, electrical performance, and environmental resilience — and leveraging connectors from experienced manufacturers like Moarconn — engineers can significantly reduce read/write failures and avoid field support issues.
