Industrial-Grade SIM Card Connectors: Design Guidelines for Vibration, Shock & Temperature

Industral-Grade SIM Card Connectors: Design Guidelines for Vibration, Shock & Temperature

Introduction

In today’s industrial IoT, automotive telematics, and rugged electronics applications, SIM Card Connectors play a critical role in reliable cellular connectivity. Unlike consumer devices, industrial systems are exposed to harsh environments — constant vibration, severe shock events, and wide temperature swings — all of which can compromise electrical performance and longevity if components are not engineered with robustness in mind.

At Moarconn, a global leader in custom connector solutions, we understand that industrial-grade SIM card connectors must exceed standard specifications to deliver reliability you can trust. This guide shares essential design guidelines and engineering insights to help product designers, hardware engineers, and procurement teams select and optimize connectors that stand up to real-world stress factors.

Why Industrial-Grade SIM Card Connectors Matter

Industrial applications demand connectors that:

1.Withstand continuous vibration from motors, conveyors, or vehicle platforms.

2.Maintain electrical integrity under mechanical shock (e.g., drops or impact).

3.Operate across wide temperature ranges from sub-zero cold starts to high thermal loads.

4.Support reliable connectivity over thousands of insertion cycles.

Unlike typical consumer SIM card connectors, industrial-grade variants incorporate reinforced housings, robust contacts, and mechanical retention features designed to endure demanding environments.

📌 Moarconn engineers partner with OEMs to customize SIM Card Connectors that meet vibration, shock, and temperature requirements for industrial applications, telematics, and rugged embedded systems.

Critical Environmental Stressors & Their Impact

1. Vibration

Industrial systems often operate in environments with persistent mechanical vibration:

Effects on connectors:micro-motion between contacts, fretting corrosion, intermittent connections.

Design considerations:Tight contact retention、 force Anti-rotation or anti-shake、 housings Locking mechanisms that prevent movement 、Conformal board supports to reduce flex

2. Mechanical Shock

Shock events (such as equipment drops or sudden impacts) can dislodge poorly designed connectors:

1.Ensure mechanical latching or screw-lock features to secure mating components

2.Adopt robust structural materials such as high-performance thermoplastics (e.g., LCP) and reinforced metal shields

3.Validate designs with industry standard shock tests

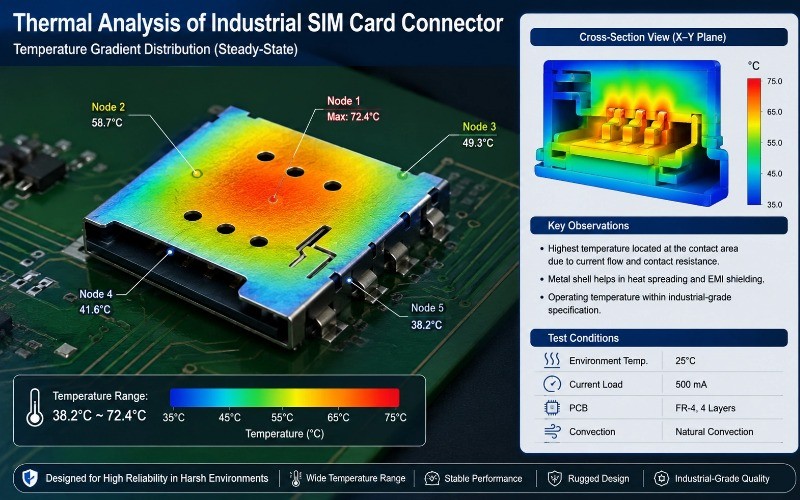

3. Temperature Extremes

1.Operating temperatures in industrial settings can exceed consumer specifications:

2.Choose materials and plating resistant to thermal cycling

3.Design to minimize thermal expansion mismatches between housing, contacts, and PCB

4.Evaluate reliability across expected temperature ranges during validation

Moarconn’s Design Best Practices for Industrial Applications

At Moarconn, our engineering teams integrate best-practice design principles into every industrial-grade SIM card connector:

👉

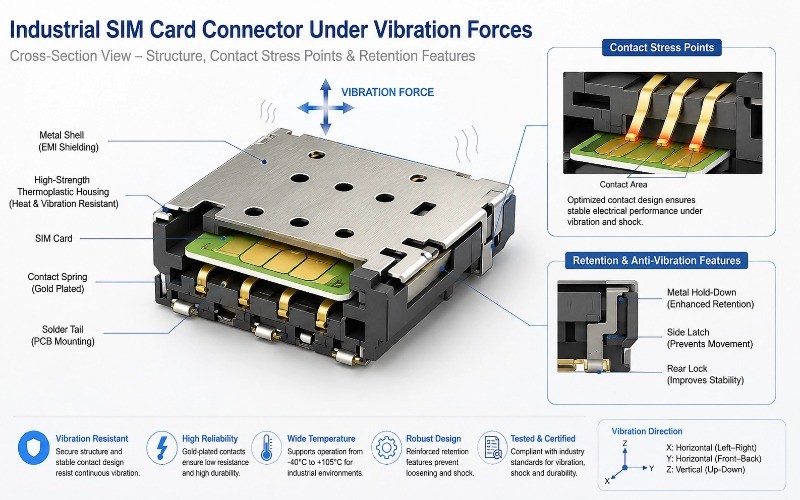

Reinforced Contact Geometry

Contacts designed to maintain consistent pressure under vibration

Gold-plated surfaces for superior corrosion resistance and low contact resistance

👉

Advanced Housing Materials

High-temperature thermoplastic materials (e.g., LCP, PA9T)

UV, chemical, and insulation-graded performance for extended service life

👉

Mechanical Retention Features

Push-pull or push-push variants with positive latch

Board locks and anchor points to resist mechanical shock

👉

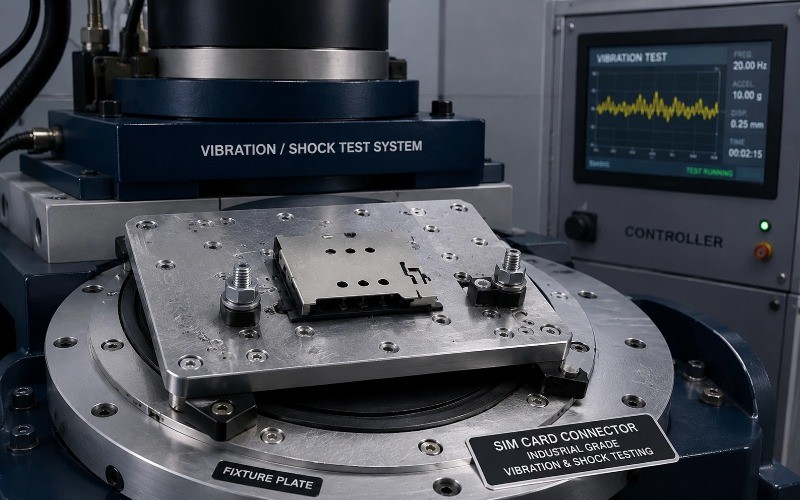

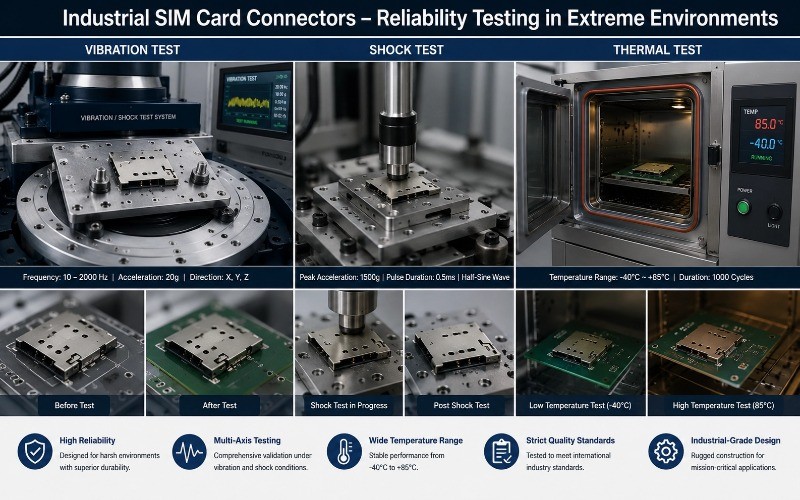

Environmental & Reliability Testing

Connector designs are validated with industry-standard tests including:

Vibration (IEC 60068-2-6)

Shock (IEC 60068-2-27)

Thermal cycling

Humidity and salt spray

This rigorous approach ensures our connectors perform reliably in automotive, industrial, transportation, and outdoor IoT systems.

Practical Checklist for Connector Selection

When evaluating industrial SIM card connectors, engineers should verify:

Criteria Must-Have Feature

Vibration resistance Anti-shake/lock features

Shock tolerance Board retention and secure latches

Temperature range High-Temp plastics and plating

Contact reliability High cycle rating (≥5,000 insertions)

Environmental sealing Optional dust/water protection

Moarconn’s catalog of SIM Card Connectors includes configurable options that meet or exceed these industrial requirements.

Real-World Applications

Industrial-grade SIM card connectors are widely used in:

Telematics and fleet tracking systems

Remote automation controllers

Energy and utility metering

Smart gateways in harsh environments

With over a decade of experience in connector design and manufacturing, Moarconn empowers engineers to solve connectivity challenges in the harshest operating conditions.

Conclusion

Engineers and product teams designing for industrial environments should prioritize connector robustness as a key system component. Industrial-grade SIM card connectors engineered for vibration, shock, and temperature resilience ensure long-term reliability and minimized maintenance.

At Moarconn, we combine engineering expertise, customizable options, and rigorous validation to support your most demanding applications.
