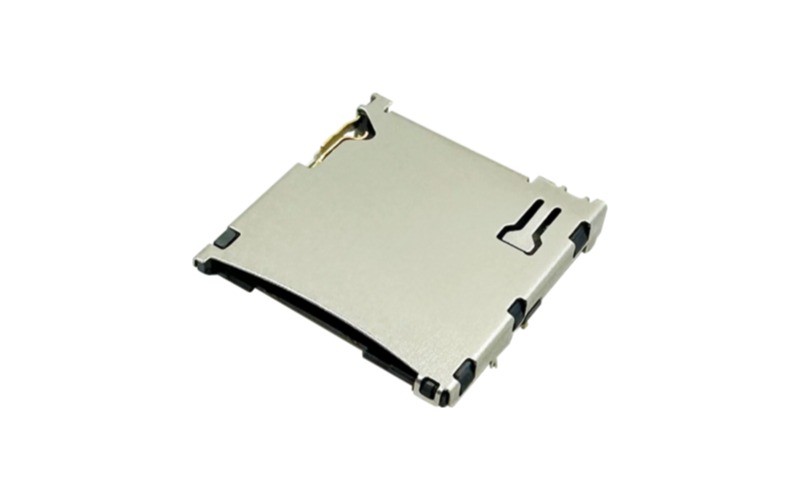

Micro SD Card Connector Applications: Design Considerations for IoT, Automotive, Industrial, and Consumer Electronics

A Micro SD Card Connector provides both the electrical interface and mechanical retention needed to connect a Micro SD card to a PCB. While widely used for removable storage, different applications require different connector designs based on space, durability, environmental conditions, and user access.

This guide explains the major applications of Micro SD Card Connectors and the key factors engineers should consider when selecting one.

Micro SD Card Connector Applications

Consumer Electronics

Micro SD Card Connectors are widely used in digital cameras, tablets, portable devices, drones, and other consumer electronics.

Important considerations include:

Vibration and mechanical shock

Temperature cycling

Secure card retention

Contact reliability

EMI/ESD considerations

Automotive suitability should always be confirmed against the specifications and qualification requirements of the specific connector and vehicle application.

Micro SD Card Connectors for IoT Devices

IoT and embedded devices often use Micro SD cards for local data logging, firmware updates, configuration storage, and diagnostics.

The main design considerations are:

Small PCB footprint

Low connector height

Reliable card retention

Card detection switch

Stable electrical contact

For IoT products deployed in the field, connector reliability can directly affect maintenance and data accessibility.

Micro SD Card Connectors for Industrial Applications

Industrial equipment such as data loggers, controllers, sensors, and monitoring systems may operate under vibration, temperature changes, and long service cycles.

Engineers should evaluate:

Mechanical strength

Card retention

Operating temperature

Contact reliability

Mating cycles

Material and plating

Unlike consumer applications, industrial designs should focus on long-term reliability rather than simply minimizing connector cost.

Micro SD Card Connectors for Automotive Applications

Micro SD cards can be used in automotive cameras, dashcams, navigation systems, telematics, and vehicle data-logging equipment.

Important considerations include:

Vibration and mechanical shock

Temperature cycling

Secure card retention

Contact reliability

EMI/ESD considerations

Automotive suitability should always be confirmed against the specifications and qualification requirements of the specific connector and vehicle application.

Key Design Considerations When Selecting a Micro SD Card Connector

Before selecting a connector, engineers should evaluate:

Design Factor What to Consider

Connector Type Push-Push, Push-Pull, Hinge

Profile Height PCB and enclosure clearance

Mounting SMT,top mount, reverse mount

Card Detection Required or optional

Durability Expected insertion/removal cycles

Contact Material Contact reliability and corrosion resistance

Environment Temperature, vibration, humidity

Shielding EMI and ESD requirements

The correct connector should be selected based on the complete application environment, not just card compatibility.

Moarconn Micro SD Card Connector Solutions

Moarconn specializes in the development and manufacturing of Micro SD Card Connectors, SD Card Connectors, SIM Card Connectors, and Smart Card Connectors.

With more than 20 years of card connector manufacturing experience, Moarconn provides various Micro SD connector configurations, including Push-Push, Push-Pull, and Hinge types, as well as different mounting options, profiles, and customized solutions.

For OEM and ODM projects, Moarconn supports the development process from requirement analysis and product design to tooling, prototyping, testing, and mass production.

Explore Moarconn Micro SD Card Connectors

How to Choose the Right Micro SD Card Connector

The selection process can be simplified into five steps:

Application → Environment → Mechanical Requirements → Electrical Requirements → Connector Configuration

Whether you are developing an IoT device, automotive system, industrial controller, or consumer electronic product, choosing the right Micro SD Card Connector can improve mechanical reliability, product integration, and long-term performance.

For customized Micro SD Card Connector requirements, contact Moarconn with your PCB drawing, existing sample, or product specifications.
