Micro SD Card Connectors: An Engineer’s Guide to Selecting the Right Connector for Embedded Applications

Meta Description

Learn how to select the right Micro SD Card Connectors for embedded applications. Explore connector types, PCB design considerations, reliability factors, and engineering solutions from MoarConn, an experienced Micro SD connector manufacturer.

Introduction

In modern embedded systems, storage reliability depends not only on the memory card itself but also on the quality and design of the Micro SD Card Connector.

From industrial controllers and security cameras to IoT gateways and portable devices, engineers need connectors that provide:

Stable electrical contact

Reliable mechanical retention

Compact PCB integration

Long-term durability under repeated use

Selecting the right Micro SD Card Connector is often overlooked during product development. However, connector failure can lead to:

Data transmission interruption

Storage detection errors

Product returns

Increased maintenance costs

This engineer’s guide explains the key factors hardware designers should evaluate when selecting Micro SD Card Connectors for embedded applications.

1. Understanding the Role of Micro SD Card Connectors in Embedded Systems

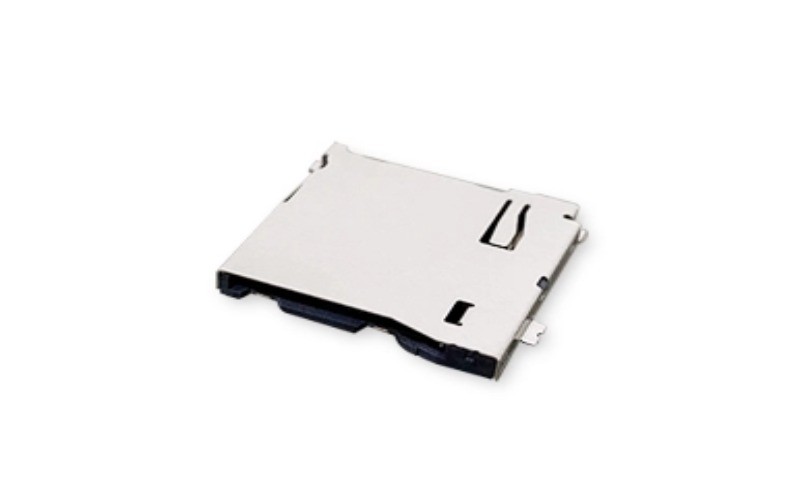

A Micro SD Card Connector is the mechanical and electrical interface between the Micro SD memory card and the host PCB.

It performs three critical functions:

1.1 Electrical Connection

The connector provides reliable contact between:

VDD power

Ground

Data lines

Clock signal

Command signal

Card detection switch

Modern micro SD systems support different communication methods including:

SPI mode

SD bus interface

High-speed SD protocols

Engineers must ensure the connector design supports the required transmission performance.

1.2 Mechanical Retention

Besides electrical connection, the connector must:

Hold the card securely

Maintain contact pressure

Resist vibration

Support insertion and removal cycles

For embedded products used in industrial environments, mechanical reliability is equally important as electrical performance.

2. Main Types of Micro SD Card Connectors

Choosing the correct connector mechanism depends on product requirements.

2.1 Push-Push Micro SD Card Connector

Working Principle

The user presses the card:

First press → lock card

Second press → eject card

Advantages:

Excellent user experience

Easy card replacement

Compact design

Typical Applications:

Cameras

Consumer electronics

Portable devices

However, designers should evaluate mechanical durability because the eject mechanism contains moving components.

2.3 Hinged Micro SD Card Connector

The hinged design provides additional card retention.

Advantages:

Better vibration resistance

Secure card positioning

Suitable for harsh environments

Applications:

Automotive electronics

Outdoor equipment

Industrial IoT devices

Engineer Comparison Table

Feature Push-Push Push-Pull Hinged

User convenience ★★★★★ ★★★ ★★★

Mechanical simplicity ★★★ ★★★★★ ★★★★

Vibration resistance Medium High Very High

Consumer application Excellent Medium Low

Industrial application Medium Excellent Excellent

3. Key Specifications Engineers Should Evaluate Before Selecting Micro SD Card Connectors

3.1 Connector Size and PCB Footprint

Embedded products continue to become smaller.

Important parameters:

Connector height

PCB area

Mounting direction

Keep-out area

Low-profile Micro SD connectors help designers optimize compact products.

3.2 Mounting Type: SMT vs Through Hole

SMT Micro SD Connector

Benefits:

Space saving

Suitable for automated assembly

Supports compact PCB layouts

Through-Hole Connector

Benefits:

Higher mechanical strength

Better for high vibration environments

3.3 Contact Material and Plating

Connector contact quality affects:

Signal stability

Corrosion resistance

Product lifetime

Important considerations:

Gold plating thickness

Contact spring force

Contact resistance

3.4 Mating Cycle Rating

Engineers should consider expected usage frequency.

Examples:

Consumer device:

Hundreds of insertions

Industrial equipment:

Thousands of cycles

Some memory card connectors available in the market specify reliability ratings up to thousands of mating cycles.

4. PCB Design Considerations for Micro SD Card Connectors

Selecting a connector is only the first step.

Correct PCB implementation affects system reliability.

4.1 Signal Routing

Recommended practices:

Keep SD signal traces short

Avoid unnecessary vias

Maintain signal integrity

4.2 Power Stability

Design considerations:

Place decoupling capacitors near power pins

Minimize voltage fluctuation

4.3 Mechanical Reinforcement

For industrial applications:

Consider:

PCB support

Connector mounting strength

Shock resistance

5. Common Micro SD Connector Failure Problems and Solutions

Problem 1: Intermittent Card Detection

Possible causes:

Poor contact pressure

Contamination

Connector wear

Solution:

Select connectors with:

Stable contact structure

Reliable plating

Proper spring force

Problem 2: Card Loosening During Operation

Possible causes:

Vibration

Insufficient retention

Solution:

Use:

Locking mechanisms

Hinged structures

Reinforced connector designs

Problem 3: Connector Damage During Assembly

Possible causes:

Incorrect PCB footprint

Excessive insertion force

Solution:

Verify:

Mechanical drawings

Assembly process

Connector specification

6. How MoarConn Helps Engineers Select the Right Micro SD Card Connector

Engineering Support From Concept to Mass Production

At MoarConn, we focus on the research, development, and manufacturing of card connectors including:

Micro SD Card Connectors

SD Card Connectors

SIM Card Connectors

Smart Card Connectors

With years of experience in precision molds and connector manufacturing, MoarConn provides:

Customized Connector Solutions

Engineers can work with MoarConn for:

Custom connector design

Mechanical structure optimization

Mold development

Product customization

Manufacturing Capability

Our service covers:

1.Product design support

2.Precision tooling

3.Connector production

4.Assembly

5.Quality support

MoarConn has developed more than 1,200 customized connector solutions and provides Micro SD connector solutions for applications such as security monitoring equipment requiring high strength, stability, and transmission reliability.

7. Engineer Checklist: Before Choosing a Micro SD Card Connector Supplier

Before finalizing your design, verify:

Technical Requirements

☐ Compatible micro SD specification

☐ Required insertion mechanism

☐ PCB footprint availability

☐ Signal performance requirement

☐ Operating temperature range

Reliability Requirements

☐ Contact durability

☐ Mating cycle rating

☐ Vibration resistance

☐ Production consistency

Supplier Capability

☐ Engineering support

☐ Customization ability

☐ Prototype availability

☐ Mass production capability

Conclusion

Selecting the right Micro SD Card Connector is an important engineering decision that affects product reliability, user experience, and long-term performance.

For embedded applications, engineers should evaluate more than connector price. Mechanical structure, electrical reliability, PCB compatibility, and supplier manufacturing capability all determine the success of the final product.

With professional expertise in card connector development and manufacturing, MoarConn provides reliable Micro SD Card Connector solutions for global embedded electronics manufacturers.
