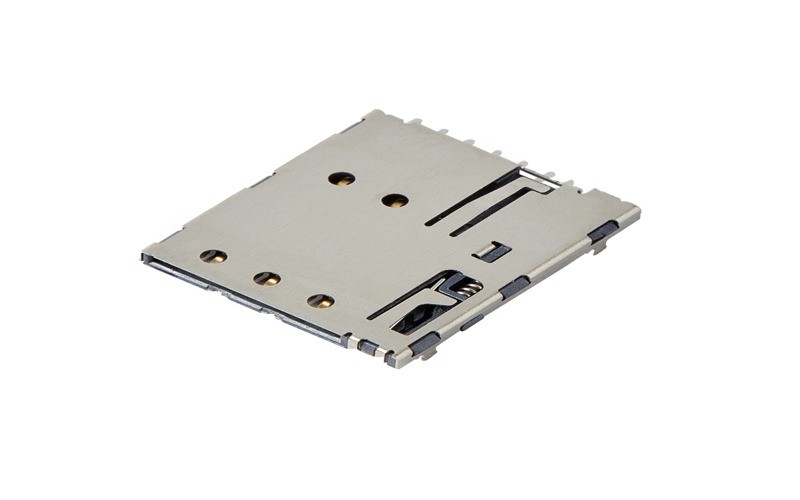

Nano SIM Card Connector Reliability Testing: What Engineers Need to Verify Before Mass Production

For modern electronic devices, a Nano SIM Card Connector is a small but mission-critical component that directly affects cellular communication reliability.

Whether used in smartphones, industrial IoT gateways, automotive tracking devices, or wireless terminals, SIM connector failure can lead to:

SIM detection errors

Intermittent communication

Device downtime

Customer returns after mass production

From an engineering perspective, selecting a Nano SIM Card Connector is not only about dimensions and cost. Before moving into production, engineers must verify:

Mechanical durability

Electrical stability

Environmental resistance

Manufacturing consistency

This article explains the key reliability tests engineers should complete before approving a Nano SIM Connector for mass production.

1. Why Nano SIM Card Connector Reliability Testing Matters

Although Nano SIM connectors are compact, they experience repeated mechanical and environmental stress during product operation.

Common field failures include:

Failure Mode Possible Cause

SIM card not detected Poor electrical contact

Signal interruption Contact resistance increase

SIM tray damage Weak mechanical structure

Connector failure after months Material fatigue or corrosion

For consumer electronics, reliability issues can damage user experience.

For industrial IoT and automotive applications, connector failure may cause:

Data transmission interruption

Remote device failure

Maintenance cost increase

Therefore, reliability testing should be completed before mass production validation.

2. Mechanical Reliability Testing of Nano SIM Card Connector

Mechanical performance is one of the most important evaluation factors for Nano SIM connectors because users frequently insert and remove SIM cards.

2.1 Insertion and Extraction Cycle Test

The insertion/extraction cycle test simulates real-world SIM card replacement.

Engineers evaluate:

Number of insertion cycles

Contact stability after cycling

Mechanical wear

Connector structure deformation

A reliable Nano SIM Card Connector should maintain stable contact performance throughout its expected lifetime.

2.2 Contact Force and Retention Testing

Proper contact force ensures stable electrical connection between:

SIM card terminals

Connector spring contacts

Too little contact force may cause:

Signal instability

SIM recognition failure

Too much force may cause:

Excessive wear

Difficult SIM insertion

Engineers should verify the balance between durability and user operation experience.

2.3 Vibration and Mechanical Shock Testing

For automotive and industrial applications, vibration resistance is critical.

Testing verifies:

Contact interruption resistance

Terminal retention strength

Housing mechanical integrity

3. Electrical Reliability Testing

Mechanical durability alone cannot guarantee reliable SIM communication.

Electrical testing verifies whether the Nano SIM Card Connector maintains stable signal transmission.

3.1 Contact Resistance Test

Contact resistance is one of the most important electrical indicators.

Engineers measure:

Initial contact resistance

Resistance change after durability testing

Resistance stability under environmental stress

Higher contact resistance may result in:

Communication errors

SIM detection failure

Signal interruption

3.2 Insulation Resistance Testing

Insulation resistance testing ensures:

No electrical leakage between terminals

Stable signal isolation

This is especially important for compact connectors with closely spaced contacts.

3.3 Signal Integrity Verification

For cellular devices, SIM communication depends on stable electrical signals.

Engineers should verify:

Clock signal stability

Data transmission reliability

Reset signal performance

4. Environmental Reliability Testing

Electronic products may operate under challenging conditions.

A Nano SIM Card Connector should be evaluated under environmental stress before production approval

4.1 Temperature Cycling Test

Testing conditions simulate:

Cold startup

High temperature operation

Temperature changes during usage

The objective is to identify:

Material expansion issues

Contact degradation

Structural deformation

4.2 Humidity and Corrosion Testing

Humidity exposure may cause:

Terminal oxidation

Increased contact resistance

Electrical instability

Engineers evaluate:

Contact plating performance

Housing material resistance

Long-term reliability

4.3 Salt Spray Testing

For outdoor and automotive devices, salt spray testing helps evaluate corrosion resistance.

Applications include:

Vehicle tracking systems

Outdoor IoT gateways

Marine communication equipment

5. Nano SIM Card Connector Quality Inspection Before Mass Production

Before approving a supplier, engineers should review both product reliability data and manufacturing quality control processes.

A complete inspection process usually includes:

Material Inspection

Verify:

Contact plating quality

Terminal material

Housing material

Dimensional Inspection

Check:

Connector height

PCB footprint accuracy

Mechanical tolerance

Assembly Quality Inspection

Evaluate:

SMT soldering quality

Terminal alignment

Connector positioning

6. How MOARCONN Ensures Nano SIM Connector Reliability

As a professional connector manufacturer, MOARCONN focuses on reliability-driven design and manufacturing validation for Nano SIM Card Connector solutions.

Our engineering approach covers:

Precision Connector Design

MOARCONN Nano SIM connectors are developed with consideration of:

Compact PCB space requirements

Stable contact performance

Mechanical durability

Manufacturing Quality Control

During production, key quality checkpoints include:

Incoming material inspection

Precision molding control

Terminal assembly inspection

Electrical performance verification

Reliability-Oriented Engineering Support

MOARCONN works with customers during product development to evaluate:

Connector structure selection

PCB compatibility

Application environment requirements

Mass production risks

For OEM and ODM customers, early reliability evaluation helps reduce redesign costs and improve product lifecycle performance.

7. Engineer Checklist: Nano SIM Connector Validation Before Production

Before mass production approval, engineers should confirm:

Verification Item Purpose

Insertion cycle test Confirm mechanical lifetime

Contact resistance test Ensure electrical stability

Vibration test Verify connection reliability

Temperature cycling Validate material performance

Humidity test Prevent corrosion failure

Dimensional inspection Ensure PCB compatibility

Supplier quality report Reduce production risk

8. How to Select a Reliable Nano SIM Card Connector Manufacturer

When choosing a Nano SIM connector supplier, engineers should evaluate:

Technical Capability

Does the supplier provide:

Engineering support?

Reliability test data?

Customized connector solutions?

Manufacturing Capability

Check:

Production consistency

Quality management system

Mass production experience

Application Experience

A supplier with experience in:

IoT devices

Automotive electronics

Communication equipment

can better understand reliability requirements

Conclusion: Reliability Testing Determines Nano SIM Connector Success

A Nano SIM Card Connector may occupy only a few millimeters of PCB space, but its reliability directly affects the entire product experience.

Before mass production, engineers should verify:

✓ Mechanical durability

✓ Electrical stability

✓ Environmental resistance

✓ Manufacturing consistency

Choosing a connector manufacturer with strong engineering capability can significantly reduce product risks.

MOARCONN provides Nano SIM Card Connector solutions designed for reliable performance in consumer electronics, IoT, and industrial applications.
