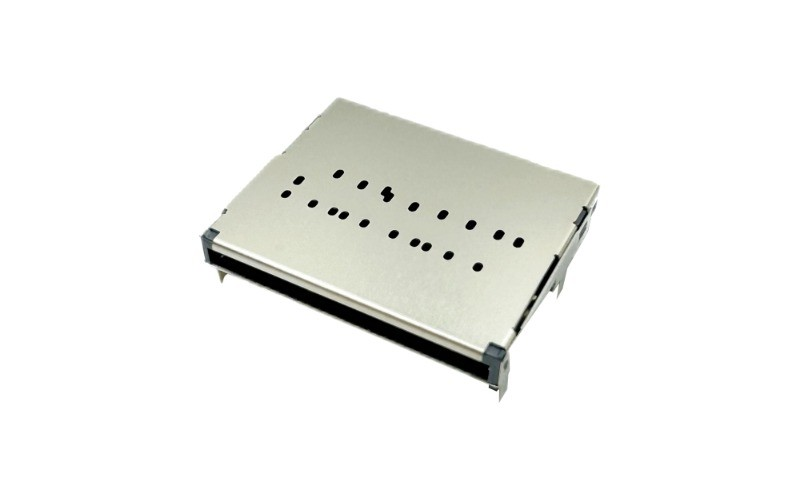

Technical Anatomy: Inside an SD Card Connector

Introduction: Why SD Card Connector Structure Matters

SD card connectors are compact yet complex components that serve as a vital bridge between memory cards and host devices. Their internal structure determines not only mechanical durability but also signal reliability, compatibility, and data integrity. Whether you’re designing for a mobile device, embedded system, or industrial application, understanding the anatomy of an SD card connector is essential.

At MOARCONN, we’ve specialized in SD card connector R&D and production for over 15 years, offering top-tier precision and customizability from mold to injection to final assembly.

1. Internal Components of an SD Card Connector

Contact Terminals

These are gold-plated copper alloy pins arranged to ensure proper electrical connection with the SD card. Most connectors use slanted or curved contacts to maintain a consistent contact force and minimize wear across thousands of insertion cycles.

Material: Phosphor bronze or beryllium copper

Typical plating: Gold over nickel

Design focus: Anti-corrosion, signal integrity, low resistance

Detection Switch (Card Detection)

A built-in mechanical or electrical switch senses card insertion. This feature is critical for devices that need to trigger power or I/O changes only when a card is inserted.

Types: Normally open or normally closed

Common in: Cameras, GPS units, embedded boards

Housing & Frame

The outer shell protects internal terminals and ensures the SD card is inserted correctly. High-temperature resistant plastics, such as LCP (liquid crystal polymer), are often used to withstand SMT reflow soldering.

Features: Polarization keys, anti-insertion structures, ground shielding

Mounting: Top-mount, mid-mount, bottom-mount options available

Ejector Mechanism (Optional)

Push-push and push-pull types dominate the market. Push-push connectors include a spring-loaded ejector system for user-friendly removal.

Push-push: Insert > Lock > Push again > Eject

Push-pull: Manually pull the card to remove

MOARCONN provides both push-push and push-pull SD card connector types with over 10,000+ insertion lifecycle rating.

2. Structural Variations by Application

Depending on the end product, SD card connector designs vary in:

Application

Consumer Devices

Automotive

Industrial

Embedded

Key Design Requirements

Compact, low profile, high insertion count

Vibration resistance, extended temperature range

Secure retention, EMI shielding, dust sealing

Systems Top/bottom mount, small footprint, high durability

MOARCONN’s factory in Dongguan supports small-batch customization, rapid prototyping, and tailored designs per application scenario.

3. Manufacturing and Assembly Considerations

SMT vs Through-hole: Surface mount is preferred for compact PCBs, while through-hole gives added strength in ruggedized devices.

Pick-and-place compatibility: Standardized reel packaging is essential for automated assembly lines.

RoHS compliance & material traceability: All MOARCONN connectors meet environmental regulations and offer material declaration reports upon request.

4. Lifecycle, Durability & Testing

Typical insertion cycle rating: 5,000 to 10,000 insertions

Testing methods:

Insertion force test

Contact resistance measurement

Heat/humidity exposure

Salt spray and vibration testing

MOARCONN's quality control includes 100% visual inspection, high-precision pin positioning checks, and high-low temperature cycling.

5. Why Choose MOARCONN for SD Card Connectors

With a vertically integrated production chain — from mold design to terminal stamping to precision plastic injection — MOARCONN guarantees:

High consistency in pin alignment

Fast lead times for customized solutions

Competitive pricing with small MOQ

Reliable OEM/ODM support

Learn more at www.moarconn.com

Conclusion

Understanding the internal anatomy of SD card connectors empowers engineers to make better design decisions, avoid common integration issues, and maximize product lifespan. Whether you're building next-gen IoT devices or ruggedized industrial controls, the right connector matters — and so does your choice of supplier.
