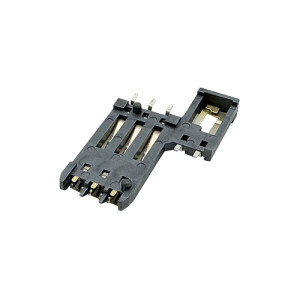

Smart Card Connector(SM145-T1200-01)

Item specifics

Product Height
1.45mm
Usable Memory Card
smart card
Base Material
LCP
Terminals Material
Phosphorous Bronze

Review

Description

Learn about Height 1.45mm Smart Card Connector
Smart card connector
Smart Card Socket Connector

2.54mm Pitch Smart Card Connector, Top Mount SMT Type, 6 pins with 2 switches,1.45mm Height

Advantage:
1. Strict coplanarity control ensures good reflow reliability.
2. Simple design, no automatic ejection mechanism, with price advantage.

3. Thin and light weight, small size, optimized PCB space. Saving internal space for customers.

4.Reliable detect switch,Assures card detection.


Understand the Parameters of the Height 1.45mm Smart Card Connector
Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
N/A
Number of pins:
6
Number of interfaces:
1
Features:
Smart/Hot-swappable
Used for:
ETC(Electronic Toll Collection),Smart Home,Payment Terminals
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 1.45mm Smart Card Connector
Smart socket card connector
Application of Height 1.45mm Smart Card Connector
smart card connector
ETC(Electronic Toll Collection)
smart card connector
Smart Home
smart card connector
Payment Terminals
Instructions for Use of Height 1.45mm Smart Card Connector
  • Step 1: Insert the Smart Card
  • Locate the Smart Card Connector: The Smart card holder is usually located on the side of the device and usually has a small cover or exposed slot.
  • Insert the Smart card: Ensure that the gold finger of the Smart card is facing down and aligned with the slot in the card holder, then gently insert the Smart card into the holder.
  • Securing the Smart Card: Push the card gently with your hand until it cannot be pushed, indicating that the card is secured and in the read state.
  • Step 2: Remove the Smart Card
  • Before removing the Smart card, make sure the device has stopped using the card. On most devices, it is safe to unmount the card from the operating system to avoid data loss or corruption.
  • Hold the Smart card by the edges and pull the card straight out so you can safely remove it.
