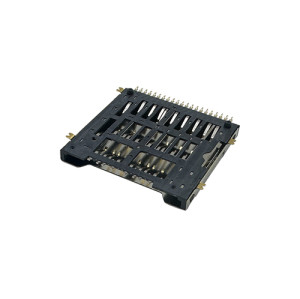

SD 8.0 Card Connector 4GB/s Top Mount Push-Push Height 3.58mm
- Model
- SD 8.0 Card Connector（SD358-T1250-10）
Item specifics
- Product Height
- 3.58mm
- Usable Memory Card
- SD 8.0/SD 7.0/SD 4.0/SD 3.0 memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 3.58mm SD 8.0 Card Connector
Secure Digital (SD) 8.0 Memory Card Connector
Secure Digital (SD) 8.0 Memory Card Connector
1.00mm Pitch SD 8.0 Memory Card Connector, Top Mount SMT Type, Push-Push structure, 3.58mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Simple design, no automatic ejection mechanism, with price advantage.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.Reliable detect switch,assures card detection.
Understand the Parameters of the Height 3.58mm SD 8.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
4 Gb/s
|
|
|
Number of pins:
|
29
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Detail Drawing of Height 3.58mm SD 8.0 Card Connector
FAQ: Height 3.58mm SD 8.0 Card Connector
What is the mounting height of this SD 8.0 card connector?
3.58 mm above the PCB, with a 1.00 mm terminal pitch. Solder-side coplanarity is held to 0.05 mm maximum across the full solder area, so the connector reflows reliably without tombstoning.
Which memory cards does it accept?
SD 8.0, SD 7.0, SD 4.0 and SD 3.0 memory cards. The push-push structure has no automatic ejection mechanism, which keeps the design simple, the profile low and the unit price competitive.
What are the electrical ratings?
0.5 A rated current, 500 V rated voltage, 100 mΩ maximum contact resistance and 1000 MΩ minimum insulation resistance. Transmission rate is 4 Gb/s over 29 pins, with a reliable detect switch for card presence.
How many insertion cycles does it last?
5,000 mating cycles under standard test conditions. The card detection switch is verified independently so the host device always knows whether a card is seated.
Can MOARCONN customize the height, plating or mounting style?
Yes. MOARCONN designs moulds, tooling and assembly equipment in-house, so height, plating, push-push / push-pull / hinge structure and terminal layout can all be reworked — 25 days from drawing to first article, zero MOQ, and 20 free samples before you commit to volume.
