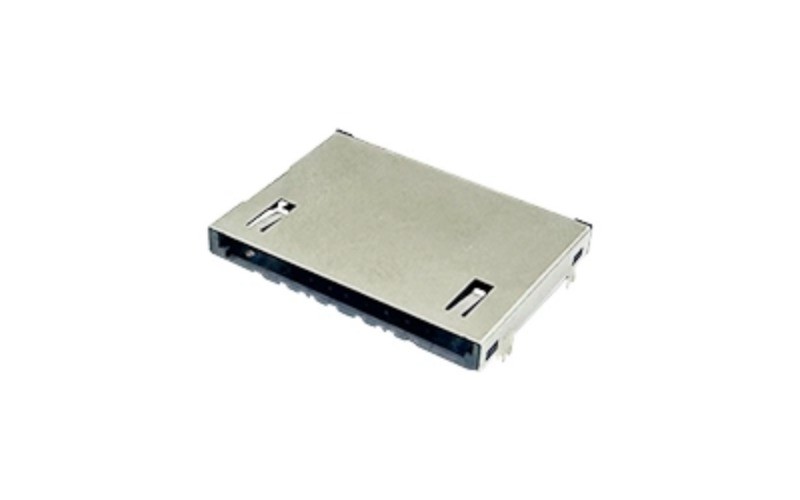

From Strip to Socket: The Continuous Manufacturing Art of SD Card Connectors

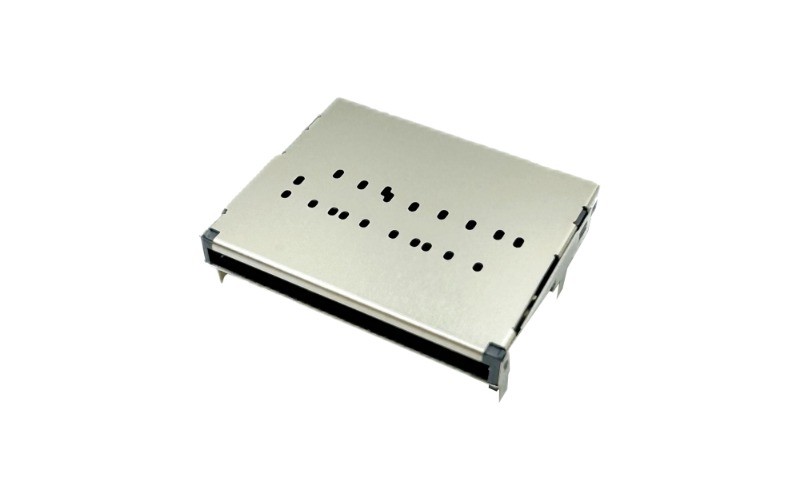

SD card connectors serve as critical bridges between memory cards and mainboards in electronic devices, responsible for high-speed data transmission and stable power supply.

Their manufacturing precision directly impacts device reliability, with tolerances often controlled at the micron level.

Modern SD card connector manufacturing follows an efficient continuous process, a methodology rooted in decades of technological accumulation.

As early as 1989, U.S. Patent US4802866A documented the technical foundation of cutting, bending, and insert molding for continuous connector production.

Image suggestion: Cross-sectional view of a precision SD card connector‘s internal structure

Continuous Manufacturing: Four-Step Precision Process

Stamping: Micron-Level Metal Forming

The process begins with phosphor bronze or beryllium copper coil materials, offering excellent conductivity, elasticity, and cost-effectiveness.

High-speed stamping presses operate at hundreds of cycles per minute, using progressive dies for gradual forming.

Moarconn Technical Highlight: We utilize Japanese AIDA precision presses with special coated dies, controlling terminal flatness within ±0.01mm, exceeding the industry standard of ±0.03mm.

Plating: Nano-Level Surface Engineering

After stamping, terminals undergo multiple plating processes including pre-nickel plating, palladium-nickel alloy, and selective gold plating.

Gold layer thickness typically ranges from 0.1-0.3 microns, providing stable contact resistance in critical contact areas.

Industry Data: High-quality plating can reduce contact resistance below 20 milliohms, with insertion/extraction durability exceeding 10,000 cycles.

Insert Molding: Integrated Structure Formation

This is the core of continuous manufacturing, where metal terminals are precisely placed into molds, and liquid plastic is injected to form an integrated structure.

Technical Depth: We use Japanese electric injection molding machines and LCP material, with mold temperature precisely controlled within ±1°C, ensuring batch-to-batch consistency.

Assembly and Testing: Intelligent Quality Assurance

The final processes include automatic assembly, laser marking, and full functional testing.

Moarconn Quality Control System: We implement a “zero-defect” strategy with dual verification through AOI visual inspection and ICT electrical performance testing.

Connector performance depends 60% on material selection, particularly the engineering plastics used for the insulator.

LCP: Preferred for High-Temperature Stability

Liquid Crystal Polymer excels in thin-wall molding and dimensional stability, suitable for reflow soldering high-temperature environments.

Moarconn Materials Laboratory: We have comprehensive material analysis equipment to provide customized material solutions for clients.

Industry Challenges and Innovative Solutions

Miniaturization Challenge

As electronic devices become thinner, SD card connector height has decreased from 2.0mm to below 0.8mm.

Solution: We developed a patented “bottom contact” design, placing terminals at the connector bottom rather than the sides, saving 30% space.

High-Speed Transmission Requirements

UHS-II and UHS-III standards require connectors to support transmission speeds above 312MB/s.

Solution: We optimized terminal impedance matching and grounding design to reduce signal reflection and crosstalk.

Environmental Regulation Compliance

RoHS and REACH regulations restrict hazardous substances in electronic components.

Solution: We achieved 100% lead-free plating and halogen-free material application.

Moarconn: Your Continuous Manufacturing Expert Partner

As connector manufacturing experts, Moarconn integrates 15 years of experience into every production stage.

Our Technical Advantages:

Fully automated continuous production lines with monthly capacity of 50 million pieces

Self-developed mold design and manufacturing capabilities

Comprehensive testing laboratory compliant with ISO/IEC standards

Strategic partnerships with global material suppliers

Client Case: The waterproof SD card connector we developed for a European automotive electronics client achieved 100% yield rate under IPX7 standard, already applied in multiple in-car entertainment systems.
