SIM Card Connector Pinouts & Electrical Basics

Table of Contents

  1. Introduction
  2. SIM Card Connector Types
  3. Pinout Overview
  4. Electrical Design Considerations
  5. Mechanical Design Considerations
  6. Applications
  7. Why Choose Moarconn

1. Introduction


SIM card connectors are essential components in modern communication devices, enabling secure identification, authentication, and storage of user data. As devices become more compact, selecting the right connector and understanding its electrical properties is vital for engineers. Moarconn specializes in high-quality SIM card connectors, offering solutions that meet international standards while supporting custom designs for OEM/ODM projects.

2. SIM Card Connector Types


- Full-size SIM connectors (25×15 mm) – Now rare, mostly used in legacy systems.
- Micro SIM connectors (15×12 mm) – Still present in some mid-generation devices.
- Nano SIM connectors (12.3×8.8 mm) – The most common form factor today.
- Embedded SIM (eSIM) – Soldered directly onto the PCB, no mechanical connector needed.

3. Pinout Overview


A typical SIM card has 6 or 8 contacts, depending on ISO/IEC 7816 standards. Common pin assignments include:
① VCC – Power supply (1.8V / 3V / 5V)
② RST – Reset signal
③ CLK – Clock signal
④ GND – Ground
⑤ VPP – Programming voltage (legacy use)
⑥ I/O – Data input/output
⑦ & ⑧ – Reserved for future use or proprietary functions.

Complete C1-C8 pin function table: See our full reference SIM Card Connector Pinout: C1-C8 Pin Functions (6-Pin / 8-Pin / 2FF).

4. Electrical Design Considerations


 Operating Voltage: Ensure compatibility with SIM specification (1.8V / 3V / 5V).
 Contact Resistance: Lower resistance improves signal integrity.
 Insertion Life: Moarconn connectors typically support 5,000+ cycles.
 ESD Protection: Necessary to protect sensitive ICs from electrostatic discharge.

5. Mechanical Design Considerations


 Push-Push vs. Push-Pull: Push-push offers convenient ejection; push-pull is more compact.
 Card Orientation: Follow PCB layout guidelines to prevent incorrect insertion.
 Durability: Moarconn products use gold-plated contacts for corrosion resistance.

6. Applications


 Mobile phones & tablets
 IoT devices & smart meters
 Automotive telematics
 Industrial controllers

7. Why Choose Moarconn


 ISO-certified manufacturing
 Custom design capability for specific devices
 Fast prototyping & sample delivery
 Global export experience in 30+ countries

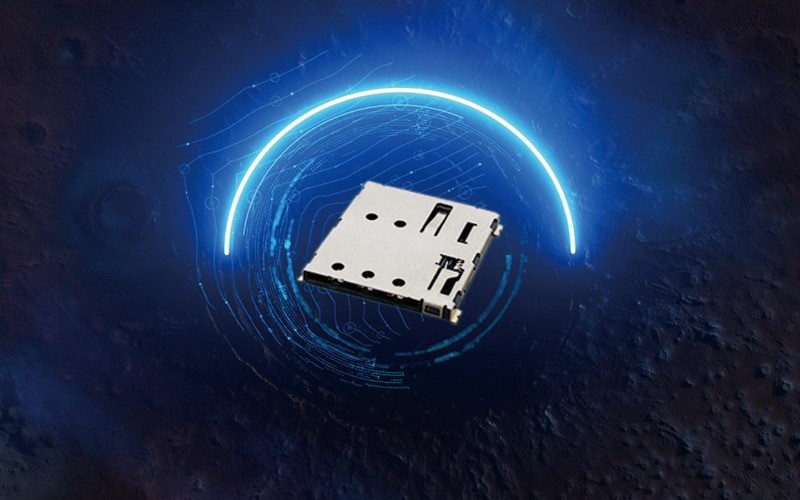

SIM Card Connector

Need a Custom SIM Card Connector for Your Project?

Moarconn provides OEM/ODM SIM card connector solutions with fast prototyping and global shipping.

Get a Quote    Request Free Sample

WhatsApp: +86-769-8160-1680

Recommended Product: Need a standard SIM socket matching the C1–C8 pinout above? Check our SIM Card Connector 6-pin with 2 Detection Pins, Push-Push Top Mount 1.80mm — 6 signal contacts plus C7/C8 card-detection switches. Request free samples for your evaluation.
