Model

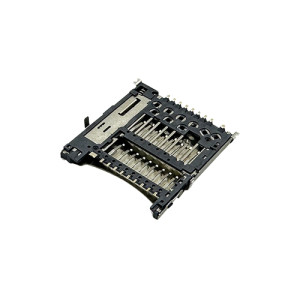

Micro SD 4.0 Card Connector(MS290-T1150-01)

Item specifics

Product Height
2.90mm
Usable Memory Card
Micro SD 3.0&4.0 memory card / TF memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 2.90mm Micro SD 4.0 Card Connector
Micro SD 4.0 Card Connector
Micro SD 4.0 Memory Card Connector

0.90mm Pitch Micro SD 4.0 Memory Card Connector, Top Mount Stand off 1.63mm SMT Type, Push-Push structure, 2.90mm Height

Advantage:
1. Easily push-push Micros SD 4.0 card injection,users can use it easily by pushing the micro SD 4.0 card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function

3. Ultra-thin Design, Offers more interior space savings for customers' products.

4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted.

5. Card polarization feature, Unique card socket design prevents improper card insertion.


Understand the Parameters of the Height 2.90 mm Micro SD 4.0 Card Connector
Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
300 Mb/s
Number of pins:
17
Number of interfaces:
1
Features:
High Rate Transmission
Used for:
Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle/Smart Home/Card reader
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 2.90mm Micro SD 4.0 Card Connector
Micro SD socket card connector
micro sd card connector
Application of Height 2.90mm Micro SD 4.0 Card Connector
micro sd card connector
Security&Monitoring
micro sd memory card connector
Smart Home
micro sd card connector
Drive Recorder
Instructions for Use of Height 2.90mm Micro SD 4.0 Card Connector
  • Step 1:Insertion Micro SD card
  • Locate the Micro SD card connector: The Micro SD card holder is usually located on the side of the device, usually with a small cover or exposed slot.
  • Insertion the Micro SD card: Make sure the gold fingers of the Micro SD card is facing down and aligned with the slot of the card holder, gently insert the Micro SD card into the card holder.
  • Fixed Micro SD card: Once the Micro SD card is inserted, the card will protrude slightly and be in a fixed position. The card should not protrude from the surface of the device.
  • Step 2:Taking out the Micro SD card
  • Before removing the Micro SD card, make sure the device has stopped using the card. On most devices, you can safely unmount the card from the operating system to avoid data loss or corruption.
  • Press the edge of the Micro SD card and it will automatically exit so you can safely remove it.
