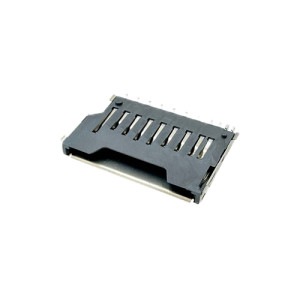

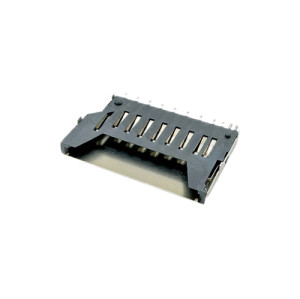

SD Card Connector Push-Pull Top Mount Height 2.80mm
- Model
- SD Card Connector（SDE-T1250-21）
Item specifics
- Product Height
- 2.80mm
- Usable Memory Card
- SD 3.0 memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 2.80mm SD 3.0 Card Connector
Secure Digital (SD) 3.0 Memory Card Connector
1.93mm Pitch SD 3.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 2.80mm Height
Advantage：
1. Supports hot-swapping, allowing the storage card to be recognized without restarting the device.
2. Ultra-thin structural design saves PCB space for customers, making it ideal for portable devices.
3.Gold-plated contact points resist oxidation and corrosion, ensuring stable signal transmission and reducing the risk of data loss.
4.Complies with RoHS and REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 2.80 mm SD 3.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
11
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Short Type Small Size
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 2.80mm SD 3.0 Card Connector
