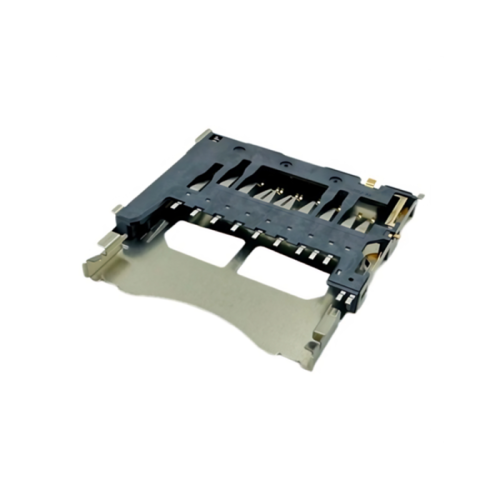

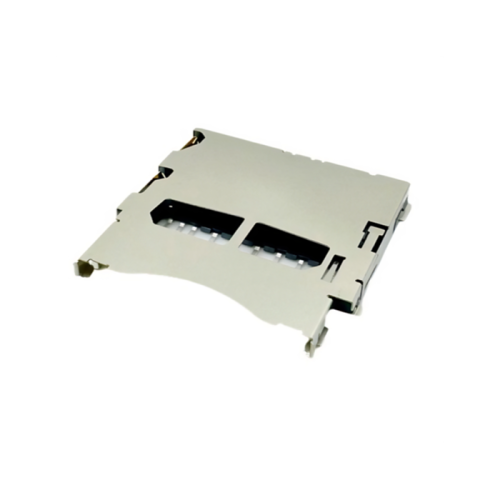

SD Card Socket Connector Push-Push Top Mount Height 2.95mm
SD Card Socket Connector Push-Push Top Mount Height 2.95mm
SD Card Socket Connector Push-Push Top Mount Height 2.95mm
Model
SD Card Connector(SD295-T1200-01-W)(5035000993)

Item specifics

Product Height
2.95mm
Usable Memory Card
SD 3.0 memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 2.750mm SD 3.0 Card Connector

sd card socket connector

Secure Digital (SD) 3.0 Memory Card Connector

2.50mm Pitch SD 3.0 Memory Card Connector, Top Mount SMT Type,Push-Push structure, 2.95mm Height

Advantage:
1. Supports hot-plug functionality, allowing the storage card to be recognized without restarting the device.

2. The product features a write-protection design to prevent accidental data modification or deletion.

3.Equipped with a push-push mechanism for easy card insertion and ejection, with a lifespan of over 10,000 cycles.

4.Complies with RoHS&REACH environmental certifications, meeting global market access standards.

Understand the Parameters of the Height 2.95 mm SD 3.0 Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
104 Mb/s
Number of pins:
8
Number of interfaces:
1
Features:
Short Type Small Size
Used for:
Computer/Card reader/Docking Station/Laptop/Digital Cameras
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 2.95mm SD 3.0 Card Connector
