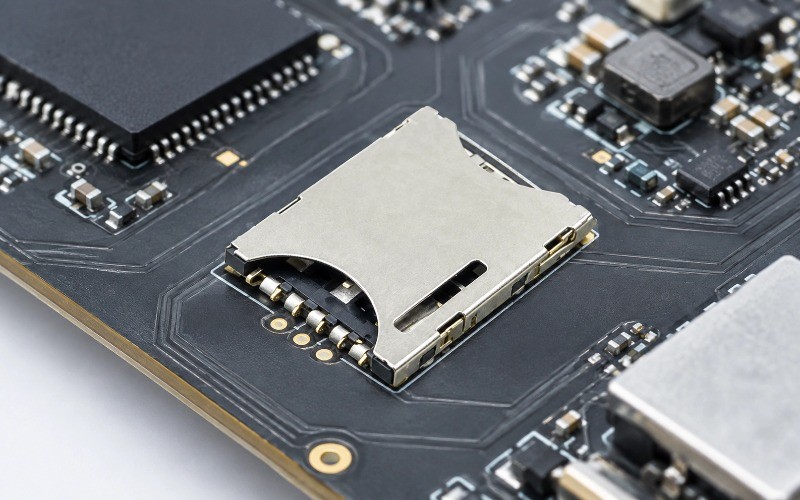

Nano SIM Card Connector Reliability: Contact Design, Durability, and Failure Prevention

A Nano SIM Card Connector is a small but critical component in cellular devices. Poor connector reliability can lead to intermittent connections, SIM detection failures, and product returns.

For engineers, selecting a reliable Nano SIM connector requires more than checking its size and price. Contact design, contact resistance, durability, card retention, materials, and environmental performance should all be considered.

What Makes a Nano SIM Card Connector Reliable?

The main factors affecting Nano SIM connector reliability include:

Contact force and contact geometry

Contact resistance

Contact material and plating

Card alignment and retention

Insertion/extraction durability

Housing dimensional stability

SMT solder reliability

Temperature, humidity, vibration, and shock resistance

A reliable connector should maintain stable electrical and mechanical performance throughout its expected service life.

1. Contact Design and Contact Resistance

The contact terminals are at the core of Nano SIM Card Connector performance.

Proper contact force is essential. Too little force may cause intermittent electrical contact, while excessive force can increase insertion force and accelerate contact wear.

Engineers should evaluate:

Contact force

Contact resistance

Terminal geometry

Spring performance

Contact wear

Contact resistance should also be checked after mechanical cycling and environmental testing, rather than only when the connector is new.

JAE's Nano SIM connector designs, for example, emphasize contact protection and anti-buckling structures to reduce the risk of terminal damage during card insertion.

2. Preventing Contact Buckling and Mis-Insertion

Because Nano SIM connectors are compact, incorrect card insertion can place significant stress on the contact terminals.

Possible consequences include:

Bent contacts

Increased contact resistance

SIM detection failure

Intermittent connection

Permanent connector damage

Anti-buckling structures, card guides, and mis-insertion prevention features can significantly improve reliability.

JAE's SF70/SF72 development specifically addresses contact buckling prevention, card retention, and protection against mechanical damage.

3. Durability and Insertion Cycles

Repeated SIM card insertion and removal can cause:

Contact wear

Plating wear

Spring fatigue

Housing deformation

Eject mechanism wear

Therefore, the required mating-cycle rating should be matched to the application.

For frequently serviced equipment, high insertion-cycle durability is particularly important. For sealed IoT equipment, environmental resistance may be more important than extremely high mating cycles.

Moarconn's published Nano SIM connector information highlights durability testing and reliability evaluation as part of its connector development approach.

4. Materials and Environmental Reliability

Contact plating and housing materials also influence long-term performance.

Gold-plated contacts can provide good resistance to wear and corrosion, while stable housing materials help maintain precise contact positioning during temperature changes and SMT processing.

For IoT, automotive, and industrial applications, engineers should also consider:

Operating temperature

Humidity

Vibration

Mechanical shock

Contamination

Corrosion

The connector should be selected according to the actual environment in which the final product will operate.

5. Common Nano SIM Card Connector Failure Modes

Failure Mode	Possible Cause	Prevention
Increased contact resistance	Wear or contamination	Proper plating and contact design
Contact buckling	Mis-insertion	Anti-buckling structure
SIM not detected	Poor contact	Stable contact and detection mechanism
Card jamming	Poor alignment	Accurate card-guiding structure
Housing deformation	Thermal/mechanical stress	Stable housing material
Solder failure	Poor SMT process	Correct PCB footprint and reflow process
Corrosion	Humidity/contamination	Suitable material and plating

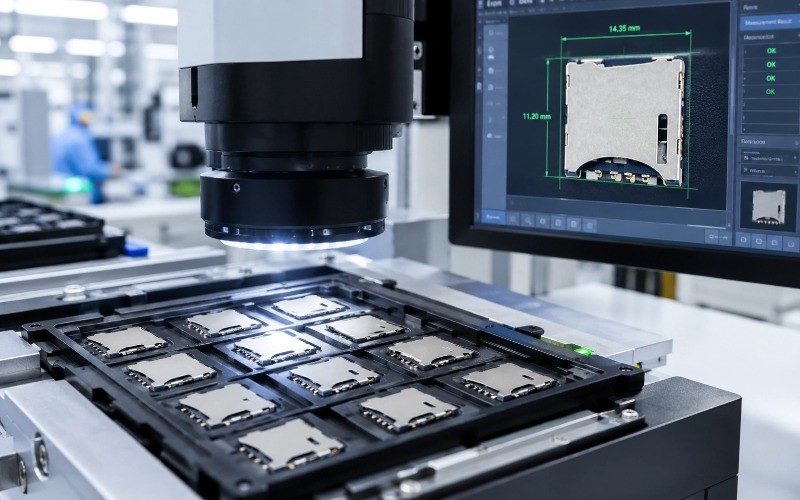

6. How to Test a Nano SIM Card Connector

A reliable Nano SIM Card Connector should be evaluated through a combination of:

Mechanical Testing

Insertion/extraction cycle testing

Card retention testing

Shock and vibration testing

Electrical Testing

Contact resistance

Electrical continuity

SIM detection performance

Environmental Testing

High/low temperature

Temperature cycling

Humidity

Corrosion testing where applicable

Testing should verify not only initial performance but also performance after mechanical and environmental stress.

7. Choosing the Right Nano SIM Card Connector

Before selecting a connector, engineers should confirm:

Required connector height and PCB footprint

Push-push, push-pull, or tray mechanism

Contact resistance

Contact plating

Mating-cycle requirements

Operating temperature

Vibration and shock requirements

Card detection requirements

SMT compatibility

Customization requirements

The best Nano SIM Card Connector is not necessarily the smallest or lowest-cost option. It is the connector whose mechanical design, electrical performance, materials, and reliability match the final application.

Why Choose Moarconn for Nano SIM Card Connectors?

With 20+ years of experience in card connector development and manufacturing, Moarconn provides Nano SIM, SIM, SD, Micro SD, and other card connector solutions.

The company supports projects from product design and tooling to prototyping, testing, and mass production, with experience in customized connector development and more than 1,200 unique connector designs.

Moarconn's Nano SIM solutions are designed for applications including IoT, communications equipment, automotive electronics, industrial equipment, medical devices, wearables, and consumer electronics.

If your project requires a standard or customized Nano SIM Card Connector, Moarconn can help evaluate the required dimensions, contact structure, durability, and application environment to develop a suitable solution.
