Micro SD Connector Push-Push Height 1.28mm
Micro SD Connector Push-Push Height 1.28mm
Micro SD Connector Push-Push Height 1.28mm
Model
Micro SD Card Connector(TF128-T1151-02)(5033981892)

Item specifics

Product Height
1.28mm
Usable Memory Card
Micro SD 3.0 memory card / TF memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about 1.28 mm Micro SD Card Connector

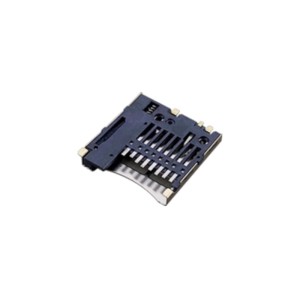

Micro SD Memory Card Connector

Micro SD Memory Card Connector

1.10mm Pitch Micro SD Memory Card Connector, Top Mount SMT Type, Push-Push Structure, 1.28mm Height

Advantage:
1. Ultra-thin design saves more internal space for customers' products.
2. The product with detection pins,support hot-plug function.

3. Push-push design can be convenient insertion and ejection of card.

4. The product conform to RoHS and REACH standards.

Understand the Parameters of the 1.28 Mm Micro SD Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
104 Mb/s
Number of pins:
8
Number of interfaces:
1
Features:
Smart/Ultrathin
Used for:
Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 1.28 mm Micro SD Card Connector

Micro SD socket card connector
Micro SD socket card connector
