Micro SD Card Connector Push-Push Height 2.10mm
Micro SD Card Connector Push-Push Height 2.10mm
Micro SD Card Connector Push-Push Height 2.10mm
Model
Micro SD Card Connector(MC210-D1250-01)

Item specifics

Product Height
2.10mm
Usable Memory Card
Micro SD 3.0 memory card / TF memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 2.10mm Micro SD Card Connector

micro sd card connector

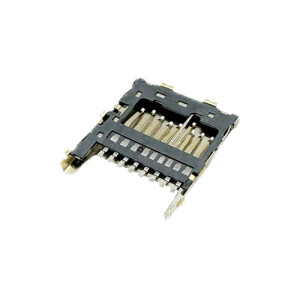

Micro SD Memory Card Connector

0.90mm pitch Micro SD Memory Card Connector,Top Mount Sink 1.45mm Type, Push-Push structure,2.10mm Height

Advantage:
1. Easily push-push Micros SD card,users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable detection switch pins, supports hot-plug function.

3. Ultra-thin design,offers more interior space savings for customers' products.

4. The soldering pins of shell are all dip type to make sure that soldering is stronger.

Understand the Parameters of the Height 2.10mm Micro SD Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
104 Mb/s
Number of pins:
9
Number of interfaces:
1
Features:
Smart/Ultrathin
Used for:
Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 2.10mm Micro SD Card Connector

Micro SD socket card connector
