High Speed SD 7.0 Card Connector Push-Pull Type Top Mount Height 5.00mm
High Speed SD 7.0 Card Connector Push-Pull Type Top Mount Height 5.00mm
High Speed SD 7.0 Card Connector Push-Pull Type Top Mount Height 5.00mm
Model
SD 7.0 Card Connector(SD500-T1250-01)

Item specifics

Product Height
5.00mm
Usable Memory Card
SD 7.0/SD 4.0/SD 3.0memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

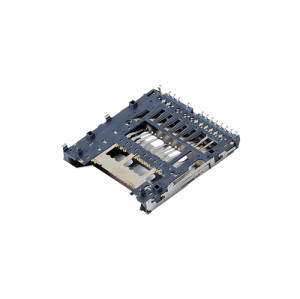

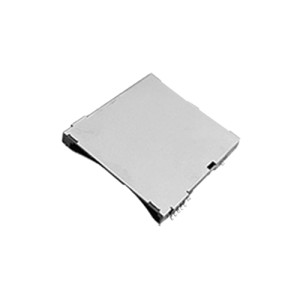

Learn about Height 5.00mm SD 7.0 Card Connector

SD card socket connector

Secure Digital (SD) 7.0 Memory Card Connector


1.05mm Pitch SD 7.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 5.00mm Height

Advantage:
1. Strict coplanarity control ensures good reflow reliability.

2. The product features a stand-off type design to accommodate customers' internal spatial requirements.

3.Incorporates a push-pull mechanism for easy SD card insertion and ejection,with a mechanical lifespan of 10,000 cycles.

4.Compliant with SD 7.0 standard, achieving transfer speeds up to 985MB/s to support 4K/8K ultra-HD video recording and high-speed photography applications requiring large-capacity storage.


Understand the Parameters of the Height 5.00mm SD 7.0 Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
985 Mb/s
Number of pins:
21
Number of interfaces:
1
Features:
High Transmission
Used for:
Computer/Card reader/Docking Station/Laptop/Digital Cameras
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 5.00mm SD 7.0 Card Connector

SD 7.0 socket card connector
