SD 7.0 Card Connector Bottom Mount Push-Push Type Height 3.25mm
SD 7.0 Card Connector Bottom Mount Push-Push Type Height 3.25mm
SD 7.0 Card Connector Bottom Mount Push-Push Type Height 3.25mm
Model
SD 7.0 Card Connector(SD325-T1150-01)

Item specifics

Product Height
3.25mm
Usable Memory Card
SD 7.0/SD 4.0/SD 3.0memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 3.25mm SD 7.0 Card Connector

SD card socket connector

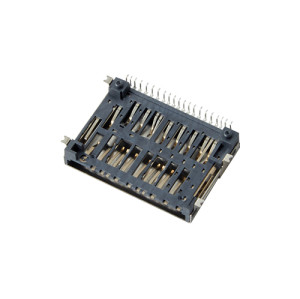

Secure Digital (SD) 7.0 Memory Card Connector

1.40mm Pitch SD 7.0 Memory Card Connector, Bottom Mount SMT Type, Push-Push structure, 3.25mm Height

Advantage:
1. The dual-shell design ensures a more robust structure.

2. Equipped with a push-push mechanism for easy insertion and ejection of SD cards, with a lifespan of up to 10,000 cycles.

3.Backward compatible with older standards such as SD 4.0 and 3.0, supporting multiple memory card types for enhanced user flexibility.

4.This product is widely used in industrial equipment, digital cameras, laptops, and other fields.

Understand the Parameters of the Height 3.25mm SD 7.0 Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
985 Mb/s
Number of pins:
10
Number of interfaces:
1
Features:
High Transmission
Used for:
Computer/Card reader/Docking Station/Laptop/Digital Cameras
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 3.25mm SD 7.0 Card Connector

SD 7.0 socket card connector
