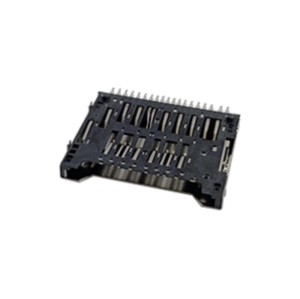

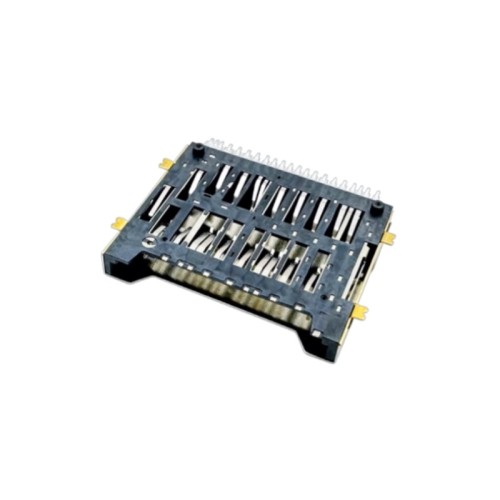

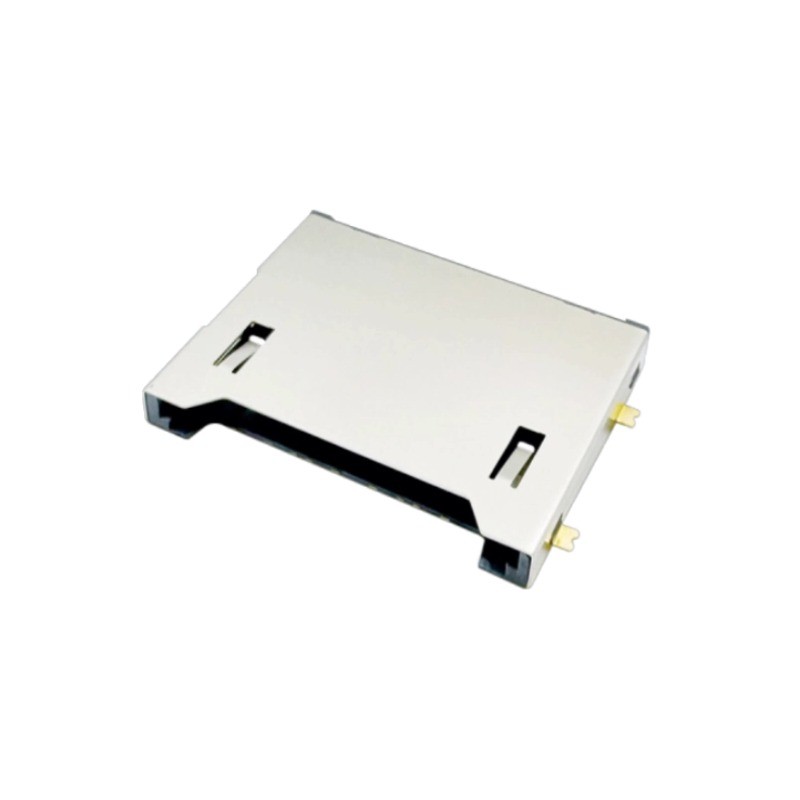

SD 7.0 Card Connector Top Mount Push-Pull Type Height 3.00mm
- Model
- SD 7.0 Card Connector（SD300-T1250-23）
Item specifics
- Product Height
- 3.00mm
- Usable Memory Card
- SD 7.0/SD 4.0/SD 3.0memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 3.00mm SD 7.0 Card Connector
Secure Digital (SD) 7.0 Memory Card Connector
1.20mm Pitch SD 7.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 3.00mm Height
Advantage：
1. The simple structural design can effectively reduce costs.
2. Equipped with a push-pull mechanism for easy insertion and ejection of SD cards, with a lifespan of up to 10,000 cycles.
3.Backward compatible with older standards such as SD 4.0 and 3.0, supporting multiple memory card types for enhanced user flexibility.
4.This product is widely used in industrial equipment, digital cameras, laptops, and other fields.
Understand the Parameters of the Height 3.00mm SD 7.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 10000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |

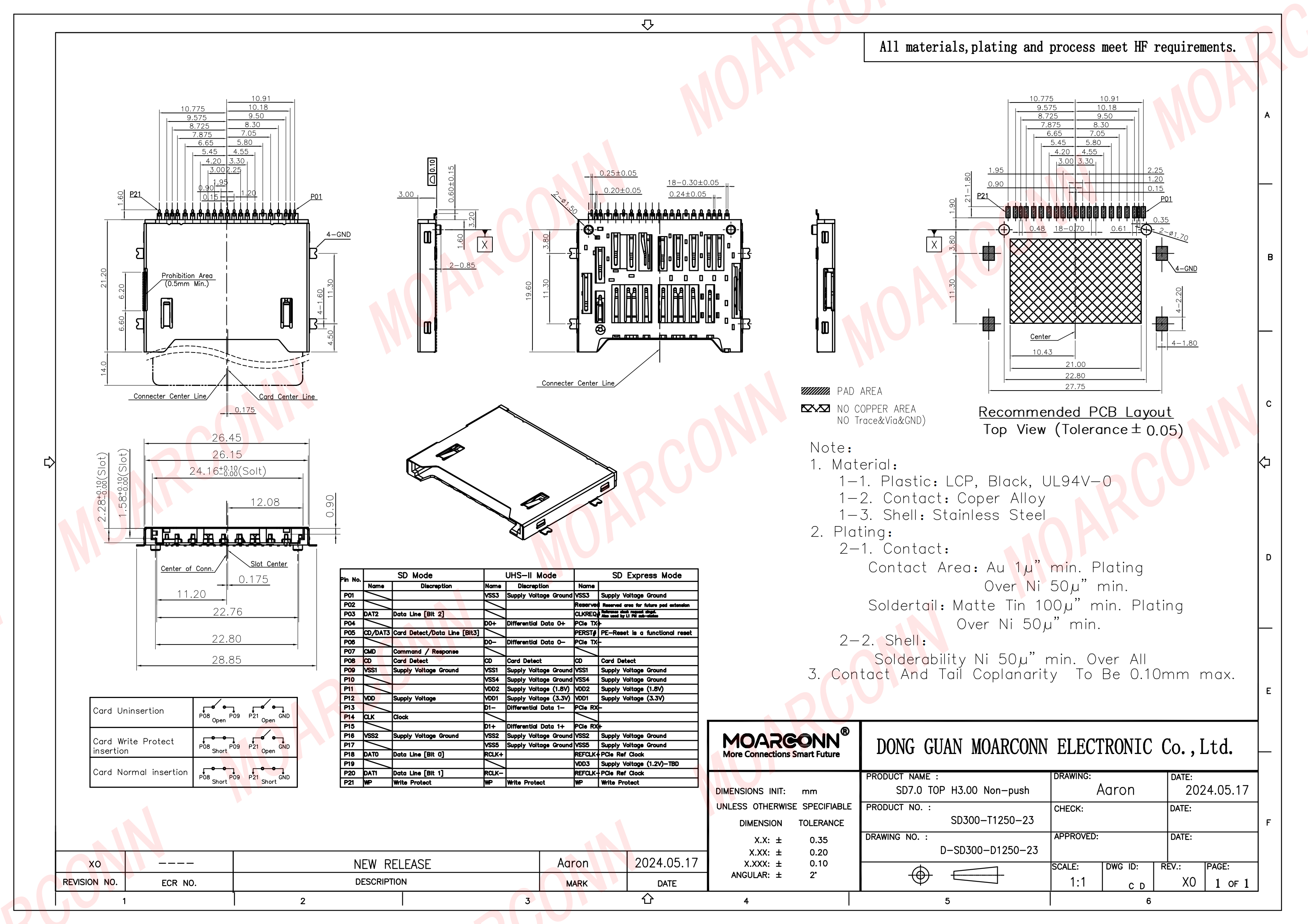

Detail Drawing of Height 3.00mm SD 7.0 Card Connector
