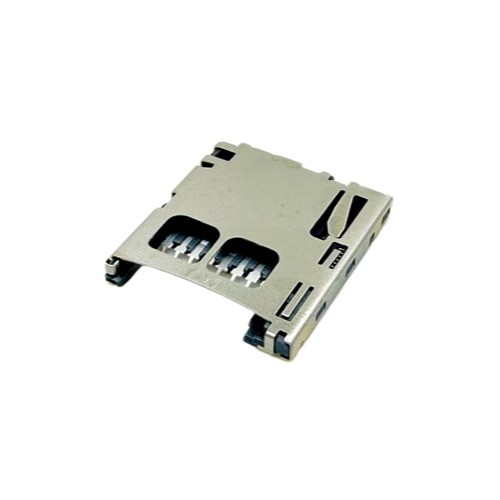

Micro SD Card Connector Push-Push Height 1.80mm
- Model
- Micro SD Card Connector (MC180-T6230-01-W) (5025700893)
Item specifics
- Product Height
- 1.80mm
- Usable Memory Card
- Micro SD 3.0 memory card / TF memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about 1.80mm Micro SD Card Connector

Micro SD Memory Card Connector
1.10mm Pitch Micro SD Memory Card Connector,Top Mount SMT Type,Push-Push Structure,1.80mm Height
Advantage:
1. Push-push structure desigin,easily insert or extract Micro SD cars.
2. Stronger machine structure design,support durability of 5000 cycles.
3. Reliable detection switch pins,support ho-plug function.
4. Slope-shaped terminals, prevent terminals damage when the card is inserted and extracted.
Understand the Parameters of the 1.80mm Micro SD Card Connector
Technical Parameters
|
||
Rating Current:
|
0.5 A
|
|
Rating Voltage:
|
500 V
|
|
Contact Resistance:
|
100 mΩ
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles |
Additional Parameters
|
||
Transmission Rate:
|
104 Mb/s
|
|
Number of pins:
|
8
|
|
Number of interfaces:
|
1
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments,Industrial Automation,Drive Recorders,Unmanned Aerial Vehicle |
Download
Detail Drawing of Height 1.80mm Micro SD Card Connector
