CF Express Card Connector B Type Push-Push Height 4.75mm
CF Express Card Connector B Type Push-Push Height 4.75mm
Model
CF Express Card Connector(CF475-T1250-01-W)

Item specifics

Product Height
4.75mm
Usable Memory Card
CF Express card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

CFexpress card connector · Push-push · Top mount

4.75mm CFexpress card connector
Press to lock, press again to eject

A 1.00mm pitch, 21-pin CFexpress card connector in a top mount, push-push design.

  • 4.75mm mounted height
  • 1.00mm terminal pitch
  • 21 pins
  • 10,000 cycles

Engineer reply within 1 working day · RoHS compliant · Custom options available

CF475-T1250-01
4.75mm height
CF475-T1250-01 · in stock for sampling
3.5 GB/speak transfer
4.75mmMounted height
10,000Insertion cycles
-45~80°COperating range
Start from the failure

A card connector is invisible — until it fails

Connector failures are rarely dramatic. They are a few milliohms of drift, a lifted pad, a card that reads intermittently in a hot car.

01 / MECHANISM

The card jams or won't pop out after some use

The ejector is the part of a push-push socket that fails first. A reliable cam-and-spring design keeps every press stroke consistent for a crisp eject across 10,000 insertion cycles.

Press-to-eject
02 / SIGNAL INTEGRITY

Data drops at speed, card not detected

Gold-plated terminals (≥0.025 µm) hold contact resistance to ≤30 mΩ with tight coplanarity control, keeping high-speed signals stable through humidity and thermal cycling.

Contact integrity
03 / REFLOW RELIABILITY

Reflow warps the insulator, pads lift

An LCP insulator takes lead-free reflow without deformation; the stainless-steel shell keeps the frame flat; terminals are coplanarity-controlled to ±0.05 mm.

SMT yield
04 / FIELD FAILURE

Card detection fails after a few insertions

A reliable detect switch guarantees card detection, backed by the retention structure, for 10,000 insertion cycles.

Card detection
Specifications

Every parameter, translated into a design decision

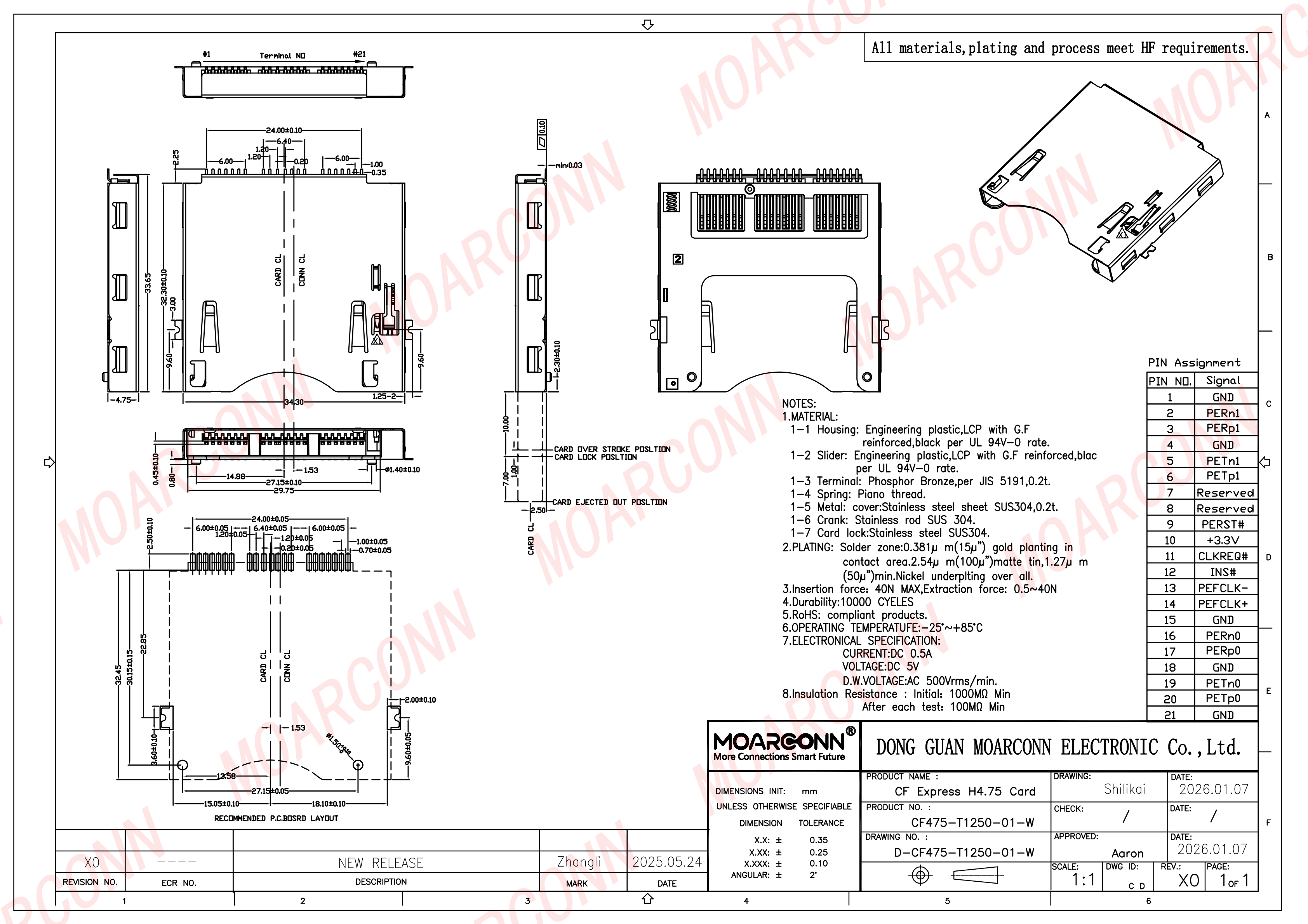

A datasheet lists values. A specification explains what each value controls. Final tolerances, plating thickness and acceptance criteria are confirmed on the 2D drawing and datasheet.

Mechanical

Mounting type
Top mount
Mounted height
4.75mm
Terminal pitch
1.00mm
Number of pins
21
Mechanism
Push-push (ejector)
Terminal coplanarity
±0.05 mm

Electrical

Rated current
0.5 A
Rated voltage
500 V
Contact resistance
≤30 mΩ
Insulation resistance
1,000 MΩ
Transfer rate
3.5 GB/s
Durability
10,000 cycles

Materials & plating

Insulator
LCP
Terminals
Phosphorous Bronze · gold ≥0.025 µm
Shell
Stainless Steel
Process
Lead-free reflow compatible
Card type
CF Express card

Environment & ordering

Operating temperature
-45 ~ 80°C
RoHS
Compliant
Part number
CF475-T1250-01
Sampling lead time
7 days
Sample policy
Free samples
Inside the connector

Four decisions that keep the card reading

Every structural decision keeps the card reading and held in place.

CF475-T1250-01

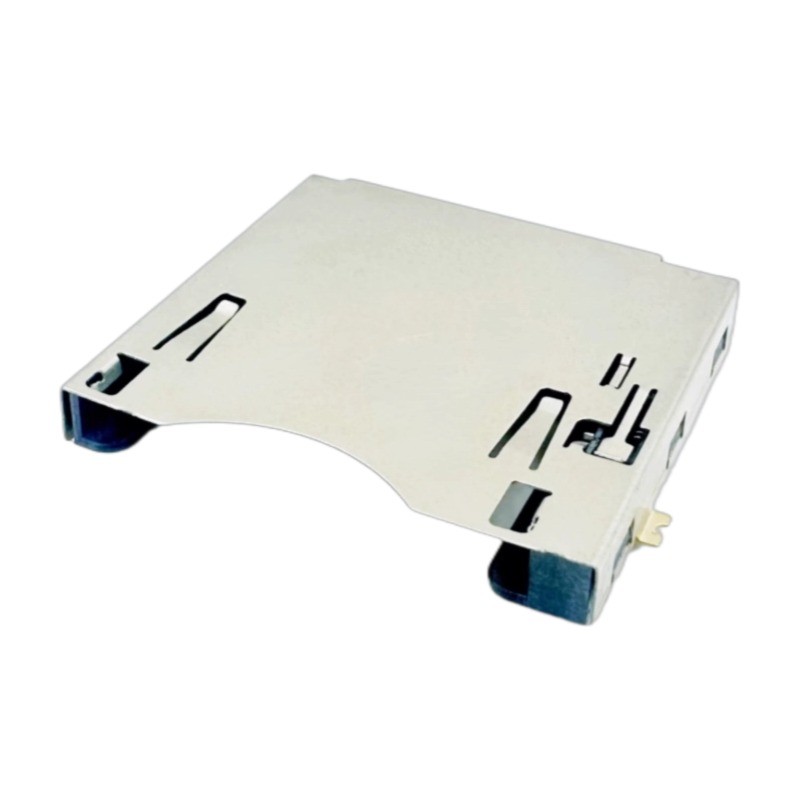

CF475-T1250-01 — stainless shell, LCP insulator, gold-plated terminals.
CF475-T1250-01

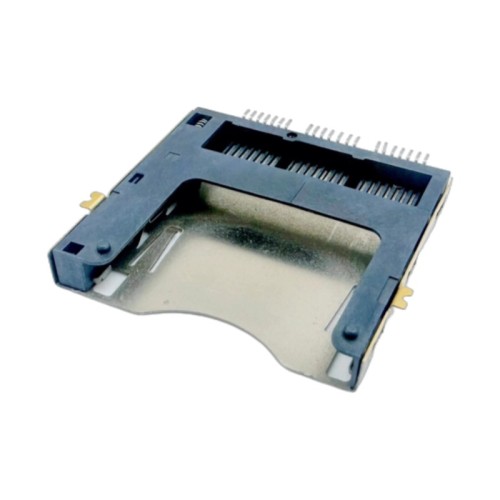

Top mount, design, 4.75mm mounted height.
01
Push-push mechanismA cam-and-spring design: press once to lock, press again to eject. Consistent stroke, crisp feel, and the card always pops out cleanly.
02
Gold-plated phosphor bronze terminalsGold resists oxidation; phosphor bronze keeps normal force over thousands of insertions, holding contact resistance to ≤30 mΩ.
03
LCP insulatorDimensional stability through lead-free reflow, so pin position and coplanarity survive the oven — not just the drawing.
04
Stainless-steel shellHolds the card under drop and vibration, shields the contact field, and keeps the frame flat during assembly.
Selection matrix

Same card, multiple mechanical answers

Same card, same interface — the family offers different height and mechanism combinations. Most mistakes are the right connector in the wrong stack-up.

ModelHeightMechanismMountingChoose it when
CF475-T1250-01This page4.75mmPush-pushTop mountPush-push

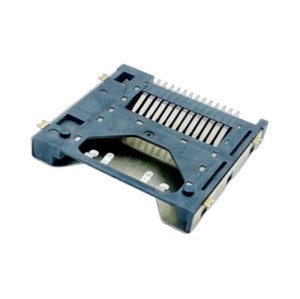

CF375-T5230-013.75mmPush-pushTop mountPush-push
Applications

Built for products that get carried, dropped and used daily

Wherever the card is a user-accessible medium, retention and contact stability matter more than price.

Cameras & camcordersThe CFexpress interface meets the bandwidth of 8K RAW and high-speed burst shooting.
Card readers & docking stationsOffload large footage fast to shorten workflow wait times.
Drones & action camsStable contact under vibration with no dropped frames at high write speeds.
Pro storage & laptopsFor professional devices that need fast, removable storage.
Before you ask

Frequently asked questions

What is the difference between CFexpress and SD sockets?

CFexpress runs on PCIe/NVMe and is far faster than SD (Type B reaches several GB/s), aimed at pro cameras and high-performance gear; the card types and interfaces are entirely different and not interchangeable.

What is the difference between CFexpress Type A and Type B?

Type A is smaller with a single lane; Type B is larger with two lanes and higher speed. The card types differ, so match the device slot.

Is it reflow compatible?

Yes. SMT sockets use an LCP insulator and coplanarity-controlled terminals for standard lead-free reflow; the exact profile is in the datasheet and drawing.

What is the minimum order and lead time?

Samples are free, sampling takes 7 days, and volume production is 7–15 days. MOQ and lead time are confirmed with the quotation; zero-MOQ trial runs are available.

Send your stack-up. Get a drawing, a sample and a straight answer.

Tell us the product thickness, card type, annual volume and the part you are replacing (if any). An engineer replies within one working day with the right model, the drawing you need, and what we would change in your layout — if anything.

1Send requirements
2Drawing + sample
3Approve & produce
Request a quote & sample sales@moarconn.com

Mention part number CF475-T1250-01 for the fastest reply.
