Smart Card Connector 8pin With 2 Switch Pins Height 3.65mm
- Model
- Smart Card Connector（SM365-T1100-01）
Item specifics
- Product Height
- 3.65mm
- Usable Memory Card
- Smart Card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
Review
Description
Learn about Height 3.65mm Smart Card Connector
Smart Card Socket Connector
2.54mm Pitch Smart Card Connector, Top Mount SMT Type, 8 pins With 2 switches, 3.65mm Height
Advantage：
1. Precision contact design supports stable card reading and data transmission.
2. The simple all-plastic design allows for effective cost control.
3. The insertion and pullout life reaches 100,000 cycles.
4.Reliable detection switch pins,support hot-plug function.
Understand the Parameters of the Height 3.65mm Smart Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 100,000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Hot-swappable
|
|
Used for: | ETC(Electronic Toll Collection),Smart Home,Payment Terminals | |

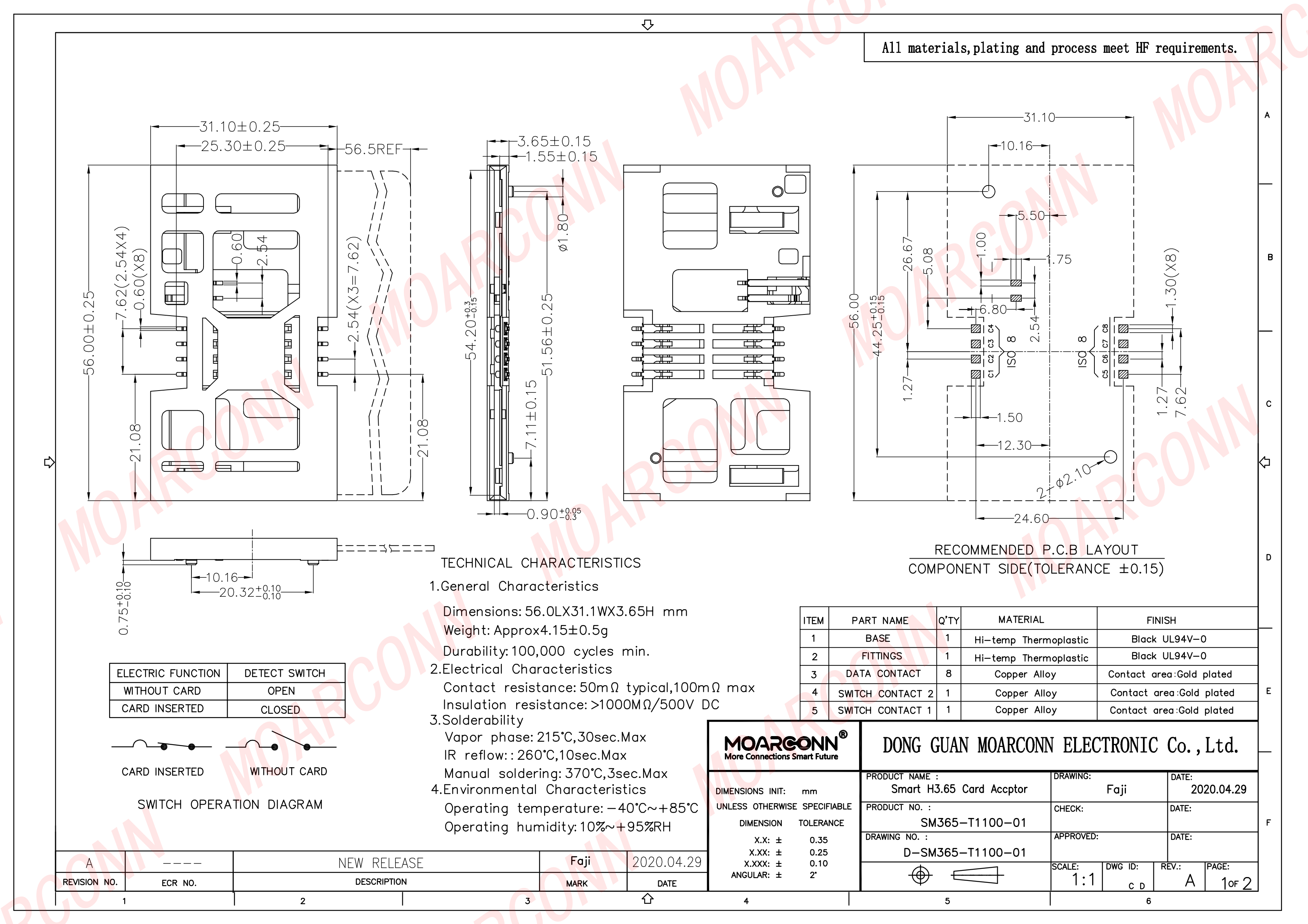

Detail Drawing of Height 3.65mm Smart Card Connector
