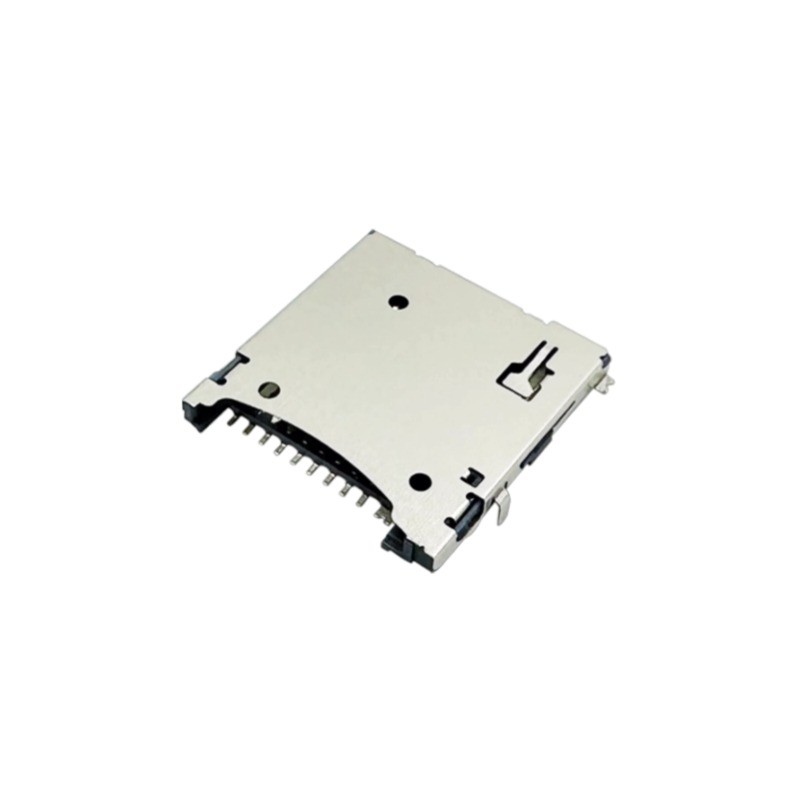

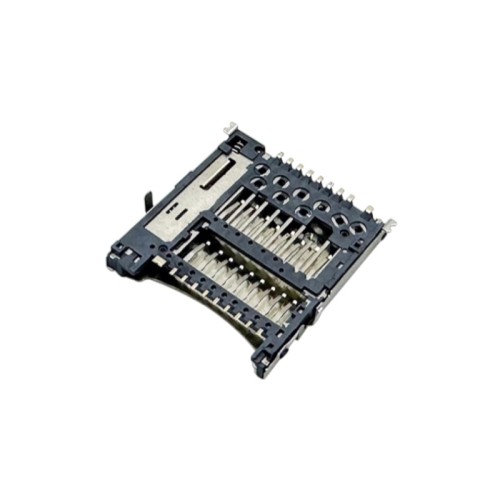

Micro SD Card Connector 985MB/s Push-Push Type Height 1.27mm
- Model
- Micro SD 7.0 Card Connector（MC127-T3250-10）
Item specifics
- Product Height
- 1.27mm
- Usable Memory Card
- Micro SD 7.0 memory card / TF memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 1.27mm Micro SD7.0 Card Connector
Micro SD7.0 Memory Card Connector
0.91mm pitch Micro SD7.0 Memory Card Connector,Top Mount Type, Push-Push structure,1.27mm Height
Advantage：
1. Easily push-push Micros SD card injection, users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable Detection Switch, Supports hot-plug function.
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.27mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Detail Drawing of Height 1.27mm Micro SD Card Connector
