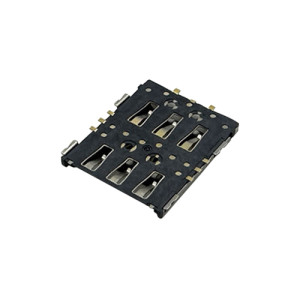

Nano SIM Card Connector, with tray Type, Height 2.10mm, Support Customization.
Nano SIM Card Connector, with tray Type, Height 2.10mm, Support Customization.
Nano SIM Card Connector, with tray Type, Height 2.10mm, Support Customization.
Model
Nano SIM Card Connector(NS210-D1250-01)

Item specifics

Product Height
2.10mm
Usable Memory Card
Nano sim card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 2.10mm Nano SIM Card Connector
Nano SIM card connector
Nano SIM Card Connector

0.90mm Pitch Nano SIM Card Connector, Top Mount SMT Type, with tray structure,2.10mm Height

Advantage:
1. The card tray can stably fix the Nano SIM card in the card holder, preventing the Nano SIM card from falling off due to vibration or shock, ensuring the stable operation of the device.
2. Nano SIM card holder with card tray is usually equipped with fool-proofing design, it can only work properly when the Nano SIM card is inserted correctly, preventing the device from being damaged or data loss due to misuse.

3. The design of the card tray can effectively prevent dust and dirt from entering the interior of the card holder, keep the Nano SIM card clean and dry, and reduce problems such as poor contact due to dust accumulation.


Understand the Parameters of the Height 2.10mm Nano SIM Card Connector
Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
N/A
Number of pins:
7
Number of interfaces:
1
Features:
Smart/Ultrathin
Used for:
Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 2.10mm Nano SIM Card Connector
Micro SIM socket card connector
Application of Height 2.10mm Nano SIM Card Connector
micro sim card connector
Mobile Communication
micro sim memory card connector
Smart Home
micro sim card connector
Laptop Computer
Instructions for Use of Height 2.10mm Nano SIM Card Connector
  • Step 1: Insert the Nano SIM Card
  • Locate the Nano SIM card connector: The Nano SIM card holder is usually located on the side of the device.
  • Insert the nano SIM card: Place the nano SIM card into the card tray, making sure that the gold finger of the nano SIM card is facing down, and gently insert the tray with the nano SIM card into the card holder.
  • Securing the nano SIM Card: Gently push the edge of the card tray with your hand until the edge of the tray is flush with the faceplate of the device. At this point the card is secured and in the read state.
  • Step 2: Removing the Nano SIM Card
  • Before removing the nano SIM card, make sure that the device has stopped using the card. On most devices, the card can be safely unmounted from the operating system to avoid data loss or corruption.
  • Remove the card safely by inserting a special thimble into the small hole in the card tray and pushing in gently so that the tray pops out automatically.
