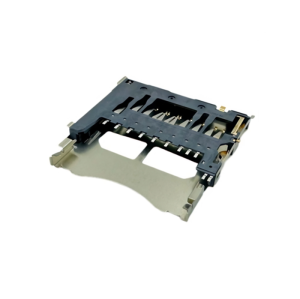

SD 3.0 Card Connector Push-Pull Top mount Height 2.80mm
- Model
- SD Card Connector（SDD-T1250-71）
Item specifics
- Product Height
- 2.80mm
- Usable Memory Card
- SD 3.0 memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 2.80mm SD 3.0 Card Connector
Secure Digital (SD) 3.0 Memory Card Connector
2.50mm Pitch SD 3.0 Memory Card Connector, Top Mount DIP Type, Push-Pull structure, 2.80mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Simple design, no automatic ejection mechanism, with price advantage.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.Reliable detect switch,assures card detection.
Understand the Parameters of the Height 2.80 mm SD 3.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
11
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Short Type Small Size
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 2.80mm SD 3.0 Card Connector
