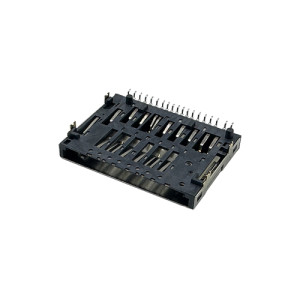

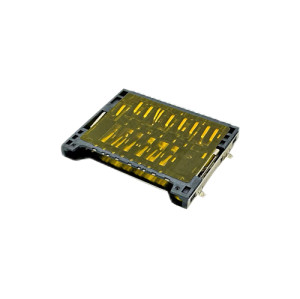

SD 4.0 Card Connector Push-Pull Top Mount Height 3.13mm
SD 4.0 Card Connector Push-Pull Top Mount Height 3.13mm
SD 4.0 Card Connector Push-Pull Top Mount Height 3.13mm
Model
SD 4.0 Card Connector(SD313-T1251-01)

Item specifics

Product Height
3.13mm
Usable Memory Card
SD 4.0/SD 3.0memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 3.13mm SD 4.0 Card Connector

SD card socket connector

Secure Digital (SD) 4.0 Memory Card Connector

1.05mm Pitch SD 4.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 3.13mm Height

Advantage:
1. Strict coplanarity control ensures good reflow reliability.

2. Supports hot-swapping, allowing storage card recognition without restarting the device.

3.Ultra-thin structural design saves PCB space for customers, making it ideal for portable devices.

4.Gold-plated contact design resists oxidation and corrosion, ensuring stable signal transmission and reducing data loss risks.

Understand the Parameters of the Height 3.13mm SD 4.0 Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
300 Mb/s
Number of pins:
19
Number of interfaces:
1
Features:
High Transmission
Used for:
Computer/Card reader/Docking Station/Laptop/Digital Cameras
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 3.13mm SD 4.0 Card Connector

SD 4.0 socket card connector
