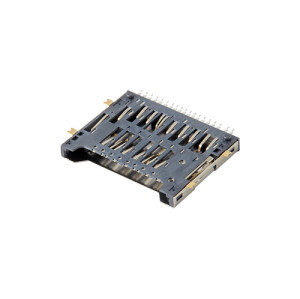

SD 4.0 Card Connector Push-Pull Top Mount Height 4.00mm
SD 4.0 Card Connector Push-Pull Top Mount Height 4.00mm
SD 4.0 Card Connector Push-Pull Top Mount Height 4.00mm
Model
SD 4.0 Card Connector(SD400-D1251-20)

Item specifics

Product Height
4.00mm
Usable Memory Card
SD 4.0/SD 3.0memory card
Base Material
LCP
Terminals Material
Phosphorous Bronze
Shell Material
Stainless Steel

Review

Description

Learn about Height 4.00mm SD 4.0 Card Connector

SD 4.0 card connector

Secure Digital (SD) 4.0 Memory Card Connector

0.90mm Pitch SD 4.0 Memory Card Connector, Top Mount DIP Type, Push-Pull structure, 4.00mm Height

Advantage:
1. The product features a top mounted stand-off design for flexible adaptation to customers' internal device space layouts.

2. Simple design, no automatic ejection mechanism, with price advantage.

3.10,000 insertion and extraction cycles with precision contact springs for long-term reliable connections.

4.Reliable detect switch,assures card detection.

Understand the Parameters of the Height 4.00mm SD 4.0 Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
300 Mb/s
Number of pins:
19
Number of interfaces:
1
Features:
High Transmission
Used for:
Computer/Card reader/Docking Station/Laptop/Digital Cameras
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 4.00mm SD 4.0 Card Connector

SD 4.0 socket card connector
