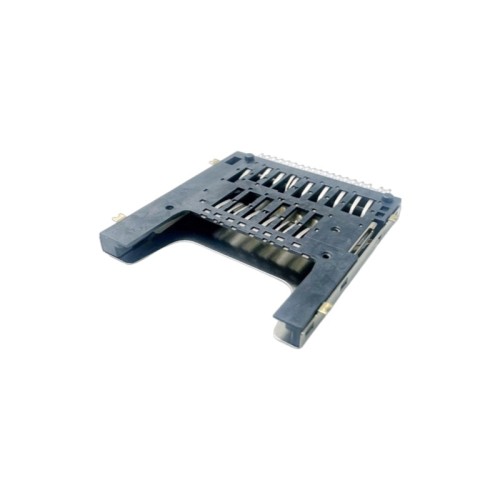

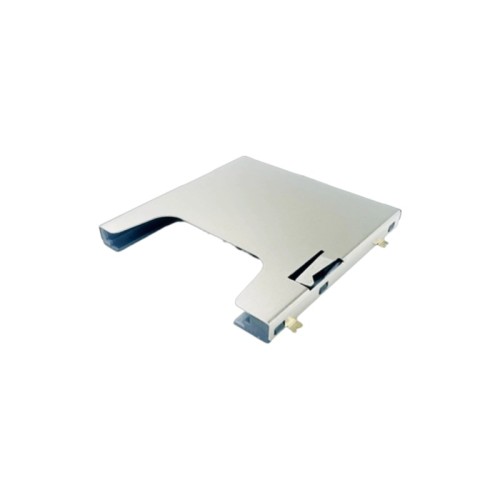

SD 4.0 Card Connector Push-Push Top Mount Height 3.00mm
- Model
- SD 4.0 Card Connector（SD300-T1230-01-W）
Item specifics
- Product Height
- 3.00mm
- Usable Memory Card
- SD 4.0/SD 3.0memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 3.00mm SD 4.0 Card Connector
Secure Digital (SD) 4.0 Memory Card Connector
1.25mm Pitch SD 4.0 Memory Card Connector, Top Mount SMT Type, Push-Push structure, 3.00mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Supports hot-swapping, allowing storage card recognition without restarting the device.
3. Ultra-thin structural design saves PCB space for customers, making it ideal for portable devices.
4. The push-push structure ensures easy card insertion and removal.
Understand the Parameters of the Height 3.00mm SD 4.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Detail Drawing of Height 3.00mm SD 4.0 Card Connector
