Micro SIM Card Connector, Push-Push Type, Height 1.35mm, Support Customization.
- Model
- Micro SIM Card Connector（MS135-T1250-12-W）
Item specifics
- Product Height
- 1.35mm
- Usable Memory Card
- Micro SIM card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 1.35 mm Micro SIM Card Connector

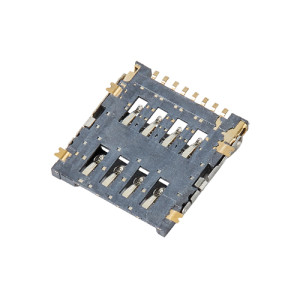

Micro SIM Card Connector
1.27mm Pitch Micro SIM Card Connector, Top Mount SMT Type, Push-Push structure, 1.35mm Height
Advantage：
1. Easily push-push Micros SIM card injection,Users can use it easily by pushing the micro SIM card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.35mm Micro SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.35mm Micro SIM Card Connector
Application of Height 1.35mm Micro SIM Card Connector
Mobile Communication
Smart Home
Laptop Computer
Instructions for Use of Height 1.35mm Micro SIM Card Connector
- Step 1: Insert the Micro SIM Card
- Locate the Micro SIM Card Connector: The Micro SIM card holder is usually located on the side of the device and usually has a small cover or exposed slot.
- Insert the Micro SIM card: Ensure that the gold finger of the Micro SIMcard is facing down and aligned with the slot in the card holder, then gently insert the Micro SIM card into the holder.
- Securing the Micro SIM Card: Push the card gently with your hand and release it when you hear a crisp click. This indicates that the card has been secured and is being read.
- Step 2: Remove the Micro SIM Card
- Before removing the Micro SIM card, make sure the device has stopped using the card. On most devices, the card can be safely unmounted from the operating system to avoid data loss or corruption.
- Press the edge of the Micro SIM card and it will automatically eject so you can safely remove it.
