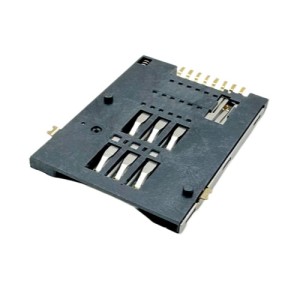

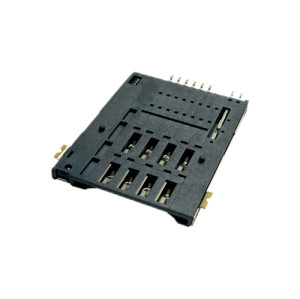

Mini SIM Card Connector, Push-Push type, top Mount Height 1.85mm, Support Customization.
- Model
- SIM Card Connector（SM185-T1131-32-W）
Item specifics
- Product Height
- 1.85mm
- Usable Memory Card
- SIM card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
Review
Description
Learn about Height 1.85mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector, Top Mount SMT Type, wtih push-push structure, 1.85mm Height
Advantage：
1. Easily push-push Mini SIM card injection,Users can use it easily by pushing the Mini SIM card to insert and push it out.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.85mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
5.0 vrms
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Tablet,Laptop,Smart Wearable,Smart Home,Automotive,Mobile Communication | |
Download
Detail Drawing of Height 1.85mm Mini SIM Card Connector
Application of Height 1.85mm Mini SIM Card Connector
Smart wearable
Mobile Communication
Smart Car
Instructions for Use of Height 1.85mm Mini SIM Card Connector
- Step 1: Insert the Mini SIM Card
- Locate the Mini SIM card connector: The Mini SIM card holder is usually located on the side of the device.
- Insert the Mini SIM card: Place the Mini SIM card into the card connector, making sure that the gold finger of the Mini SIM card is facing down, and gently insert the tray with the Mini SIM card into the card holder.
- Securing the Mini SIM Card: Gently push the edge of the card tray with your hand until the edge of the tray is flush with the faceplate of the device. At this point the card is secured and in the read state.
- Step 2:Taking out the Mini SIM card
- Before removing the Mini SIM card, make sure that the device has stopped using the card. On most devices, the card can be safely unmounted from the operating system to avoid data loss or corruption.
- Remove the card safely by inserting a special thimble into the small hole in the card tray and pushing in gently so that the tray pops out automatically.
