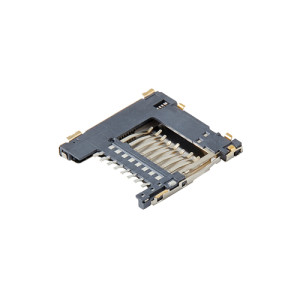

Micro SD Card Connector, Push-Pull Style, Top Mount type, Height 1.15mm, Support Customization.
- Model
- Micro SD Card Connector（MS115-T7131-02）
Item specifics
- Product Height
- 1.15mm
- Usable Memory Card
- Micro SD 3.0 memory card / TF memory card
- Base Material
- LCP
- Terminals Material
- Phosphorous Bronze
- Shell Material
- Stainless Steel
Review
Description
Learn about Height 1.15 mm Micro SD Card Connector
Micro SD Memory Card Connector
0.70mm Pitch Micro SD Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 1.15mm Height
Advantage：
1. Easily push-push Micros SD card injection， Users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.15 mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
9
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.15 Mm Micro SD Card Connector
Application of Height 1.15 mm Micro SD Card Connector
Security&Monitoring
Smart Home
Drive Recorder
Instructions for Use of Height 1.15 mm Micro SD Card Connector
- Step 1:Insertion Micro SD card
- Locate the Micro SD Card Connector: The Micro SD card holder is usually located on the side of the device and usually has a small cover or exposed slot.
- Insert the Micro SD card: Ensure that the gold finger of the Micro SD card is facing down and aligned with the slot in the card holder, then gently insert the Micro SD card into the holder.
- Securing the Micro SD Card: Push the card gently with your hand until it cannot be pushed, indicating that the card is secured and in the read state.
- Step 2: Remove the Micro SD Card
- Before removing the Micro SD card, make sure the device has stopped using the card. On most devices, it is safe to unmount the card from the operating system to avoid data loss or corruption.
- Hold the Micro SD card by the edges and pull the card straight out so you can safely remove it.
